KL: Shift Indicator Lamp (SIL) Introduction

KL: Pinpoint Tests

Note

This Pinpoint Test is intended to diagnose the following:

• Harness circuit: SIL
• Top gear switch
• SIL dimmer relay
• SIL bulb and SIL circuit fuse
• Powertrain Control Module (PCM) (12A650)

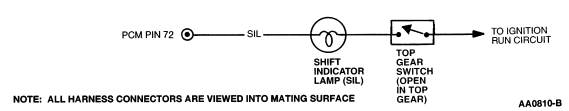

Pinpoint Test Schematic

Escort/Tracer

KL: Pinpoint Tests
