DH: Throttle Position (TP) Sensor Introduction

DH: Pinpoint Tests

Note

This Pinpoint Test is intended to diagnose the following:

• Throttle Position (TP) Sensor (9B989)
• Binding and sticking Throttle Linkage
• Harness Circuits: TP, SIG RTN, VREF, Vehicle Power (VPWR), Power Ground (PWR GND)
• Powertrain Control Module (PCM) (12A650)

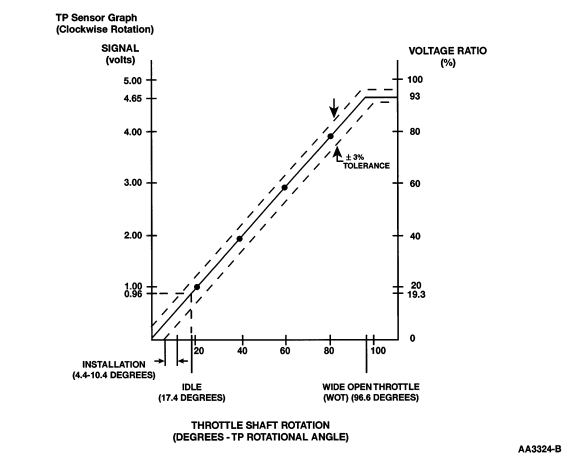

Graphs

Note: The normal range of the throttle angle measurement for the throttle position (TP) sensor is 0 to 96.6 degrees.

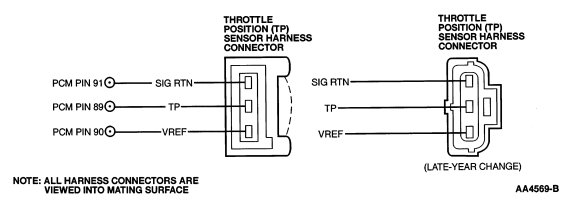

Pinpoint Test Schematics and Connectors

Contacting TP Sensor

None Contacting TP Sensor (3.8L Windstar, F150/F250, E-Series, Expedition/Navigator)

2.0L Contour/Mystique

LS6/LS8

All Others
