Section 03-03: Engine Cooling
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Transmission Oil Cooler



Aluminum Core Radiator

Removal

  1. Remove the radiator outlet tank (8054) from the radiator (8005) as outlined.
  1. Remove the intermediate fittings, retaining nuts and washers from the transmission oil cooler (7A095) inlet and outlet connections. Then,lift the transmission oil cooler from the radiator outlet tank .
  1. Remove the rubber gaskets from the transmission oil cooler inlet and outlet connections if the transmission oil cooler is to be reused.


Installation

  1. Install new rubber gaskets on the transmission oil cooler inlet and outlet connections.
  1. Position the transmission oil cooler to the radiator outlet tank and insert the inlet and outlet connections through the holes in the radiator outlet tank .
  1. Install the flatwasher and nut on each transmission oil cooler connection to retain the transmission oil cooler in the radiator outlet tank .
  1. Tighten the transmission oil cooler retaining nuts to 12-15 Nm (9-11 lb-ft) and install the intermediate fittings in the transmission oil cooler fittings.
  1. Install the radiator outlet tank on the radiator core header as outlined under Radiator Tank Installation .

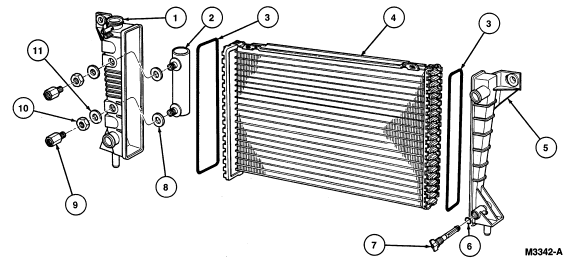

Typical Radiator Shown, Mustang and Cobra Radiator Similar





Item Part Number Description
1 8054 Radiator Outlet Tank
2 7A095 Transmission Oil Cooler
3 8B378 O-Ring Gasket (2 Req'd)
4 8005 Radiator
5 8079 Radiator Inlet Tank
6 — O-Ring (Part of 8115)
7 8115 Radiator Drain Cock
8 8C242 Radiator Tank Transmission Oil Cooler Seal (2 Req'd)
9 7D273 Intermediate Fitting (2 Req'd)
10 359041-S8 Nut (2 Req'd)
11 N803068-S8 Washer (2 Req'd)
