Section 01-20B: Restraints, Passive—Supplemental Air Bag System
1993 Mustang Workshop Manual
DIAGNOSIS AND TESTING

Diagnostic Trouble Code 44



RH Primary Crash Sensor Not Mounted to Vehicle Properly



Normal Operation

The diagnostic monitor measures the resistance between Pin 20 (Circuit 618, P/LG) and Pin 3 (diagnostic monitor reference ground). If the diagnostic monitor measures a difference of more than 2.0 ohms between Pin 20 and Pin 3, it will flash out Diagnostic Trouble Code 44.

Note that Circuit 618 (P/LG) is attached to the side of the RH primary crash sensor case. In addition, the case is grounded to the vehicle.



Possible Causes

High resistance on Pin 20 (Circuit 618, P/LG) to ground can be caused by:

  1. A poor connection due to loose mounting, dirt, or corrosion at the RH primary crash sensor mounting location.
  1. An open or damaged wire in Circuit 618 (P/LG) from Pin 20 of the diagnostic monitor harness connector to RH primary crash sensor.
  1. An open circuit inside RH primary sensor.

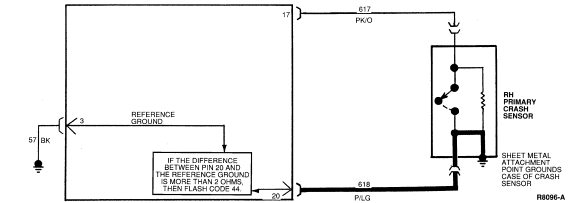

Electrical Schematic—Diagnostic Trouble Code 44






DIAGNOSTIC TROUBLE CODE 44



44-1 VERIFY CONDITION

Yes
GO to 44-2.

No
Read the normal operation description for this diagnostic trouble code. EXAMINE the diagnostic trouble code schematic and look for areas where intermittent conditions would occur (connectors, splices, crimps, etc.).
DO NOT proceed with Pinpoint Test until the code is flashing!
Failure to do so will result in needless replacement of the air bag system components and repeat service.



44-2 CHECK RESISTANCE

Yes
GO to 44-3.

No
REPLACE diagnostic monitor. RECONNECT system. VERIFY system. REACTIVATE system.



44-3 ISOLATE CONCERN

  • Disconnect RH primary crash sensor from harness.
  • Measure resistance between Circuit 618 (P/LG) in sensor connector and a nearby, good chassis ground. Make sure that this ground is clean and bare.
  • Is resistance less than 2 ohms?




Yes
INSPECT Circuit 618 (P/LG) between Pin 20 if diagnostic monitor and sensor for open circuit. CHECK all interconnects and splices for poor connections. SERVICE any poor connections. RECONNECT system. VERIFY system. REACTIVATE system.

No
REMOVE screws retaining sensor. CLEAN mounting surface of sensor and chassis. INSTALL sensor. TIGHTEN screws to proper specification. GO to 44-4.



44-4 CLEAN AND MEASURE RESISTANCE OF SENSOR TO GROUND

  • Measure resistance between Circuit 618 (P/LG) in sensor connector and a good chassis ground.
  • Is resistance less than 2 ohms?
Yes
RECONNECT system. VERIFY system. REACTIVATE system.

No
REPLACE RH primary crash sensor. RECONNECT system. VERIFY system. REACTIVATE system.
