Door Glass and Quarter Window

NOTE: The convertible top assembly must be properly adjusted before the door glass, quarter window and/or weatherstrips can be adjusted. Refer to Top Linkage Alignment.

A properly adjusted door glass and quarter window glass should fit as follows:

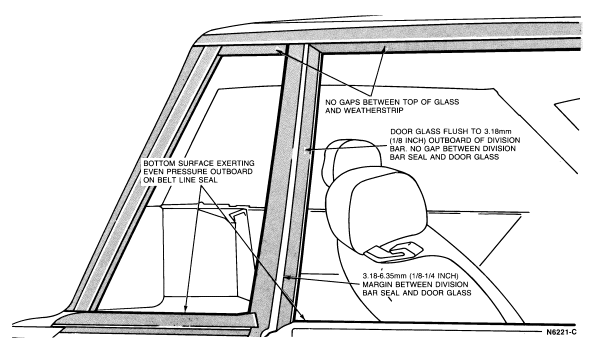

• There should be no gaps between the top of the glass and the weatherstrip.

• The door glass should be flush to 3.18mm (1/8 inch) outboard of the division bar. There should be no gap between the division bar seal and the door glass.
• There should be an even margin of 3.18-6.35mm (1/8-1/4 inch) between the division bar seal and the door glass.
• The bottom surface at both glasses should exert an even pressure outboard along the belt line seal.
• The quarter window should have an even fit along the entire length of the C-pillar weatherstrip.

• As the door is closed, the door glass will enter the weatherstrip contour, the weatherstrip will fold to form a seal and the glass will stop.

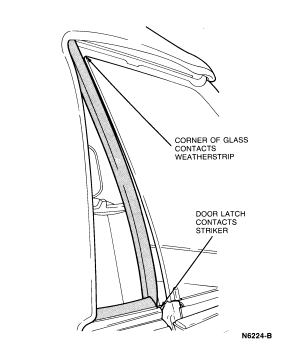

• The corner of the glass will make contact with the weatherstrip just as the door latch mechanism contacts the door striker. With the door glass in the full up position, slowly close the door. When the corner of the glass touches the weatherstrip, a faint "click" will be heard as the door latch contacts the door striker.
