Section 03-03: Engine Cooling
1993 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Block Heater



Removal

  1. Open hood and install protective fender covers.
  1. Disconnect battery ground cable.
  1. Position drain pan below radiator.

     WARNING: NEVER REMOVE THE RADIATOR PRESSURE CAP UNDER ANY CONDITIONS WHILE THE ENGINE IS OPERATING. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN DAMAGE TO THE COOLING SYSTEM OR ENGINE AND/OR PERSONAL INJURY. TO AVOID HAVING SCALDING HOT COOLANT OR STEAM BLOW OUT OF THE RADIATOR, USE EXTREME CARE WHEN REMOVING THE CAP FROM A HOT RADIATOR. WAIT UNTIL THE ENGINE HAS COOLED, THEN WRAP A THICK CLOTH AROUND THE RADIATOR PRESSURE CAP AND TURN IT SLOWLY TO THE FIRST STOP. STEP BACK WHILE THE PRESSURE IS RELEASED FROM THE COOLING SYSTEM. WHEN IT IS CERTAIN ALL THE PRESSURE HAS BEEN RELEASED, PRESS DOWN ON THE CAP (STILL WITH A CLOTH), TURN AND REMOVE.

  1. Remove radiator cap following outlined precautions. Attach 9.5mm (0.4 inch) hose to drain tube and open radiator drain cock. Drain radiator to a corresponding level below block heater. Close radiator drain cock.
  1. Disconnect block heater power cable from block heater.

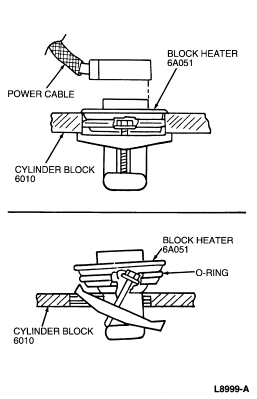

  1. Loosen retaining screw and pry block heater from cylinder block while moving retaining screw from side to side to disengage clamp strap.



  1. Remove block heater while noting the position of heating element.
  1. Remove block heater power cable.


Installation

  1. Clean the inside diameter of the cylinder block hole machined surface and hold entrance. Remove any burrs at the hole entrance to avoid damage to the o-ring.
  1. Apply a liberal coating of chassis grease (C1AZ-19590-B, C, D, E) or equivalent to block heater o-ring and cylinder block opening.
  1. Insert heater in cylinder block hole in the same position as it was removed.
  1. Tighten screw to 1.6-1.8 Nm (14-16 lb-in).
  1. Connect block heater power cable to block heater.
  1. Install block heater power cable. Assure power cable is routed and tie-strapped away from rotating or hot components.
  1. Refill cooling system with specified anti-freeze solution. Refer to Cooling System—Filling procedure.
  1. Connect battery ground cable.
  1. Start engine and check for leaks.
  1. Check coolant level as required.
  1. Remove fender covers and close hood.
