FD: Brake Pedal Position (BPP) Switch Introduction

FD: Pinpoint Tests

Note

This Pinpoint Test is intended to diagnose the following:

• Brake pedal position (BPP) switch
• Harness circuits: B+, BPP, GND and stoplamp PWR
• Powertrain control module (PCM) (12A650)

Pinpoint Test Schematics and Connectors

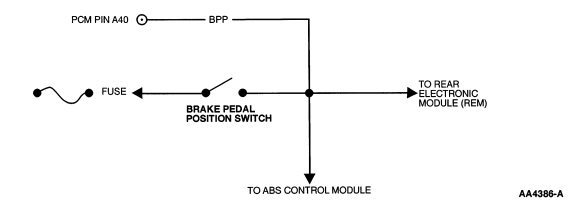

LS6/LS8

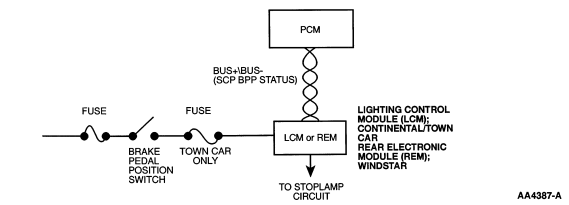

Continental, Town Car and Windstar

The PCM receives BPP information through the SCP link. This pinpoint test will only verify Self-Test was performed correctly. For detail wiring information, refer to the Workshop Manual or Wiring Diagrams Manual.

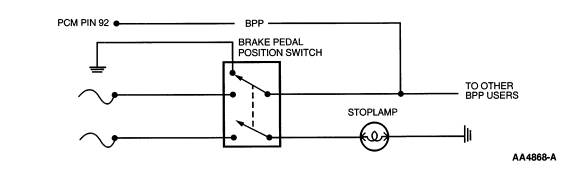

Explorer/Mountaineer/Ranger

All Others

FD: Pinpoint Tests
