On Board Diagnostics II PCED

1999 PCED On Board Diagnostics II

SECTION 5: Pinpoint Tests

DS: Air Conditioning Pressure (ACP) Sensor
Introduction

DS: Pinpoint Tests

Note

This Pinpoint Test is intended to diagnose the following:

Harness circuits: ACP, VREF, SIG RTN
Air Conditioning Pressure (ACP) Sensor (19D594)
Powertrain Control Module (PCM) (12A650)

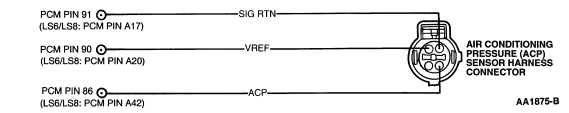

Pinpoint Test Schematics and Connector

DS: Pinpoint Tests
