Section 01-20B: Restraints, Passive—Supplemental Air Bag System
1994 Mustang Workshop Manual
DIAGNOSIS AND TESTING

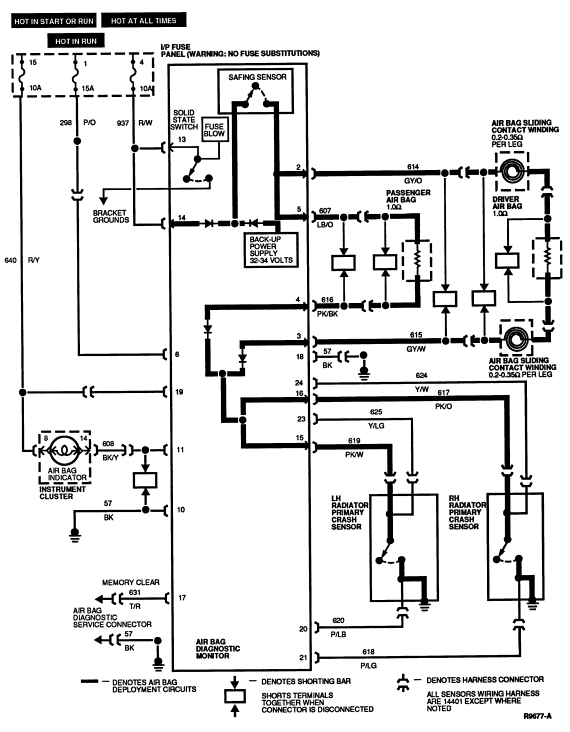

Electrical Schematic



Air Bag System

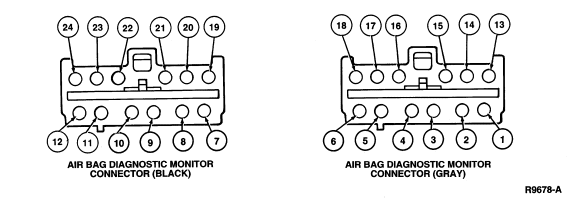

Air Bag Diagnostic Module Connectors






Pin Number Circuit Circuit Function
1 — Not Used
2 614 (GY/O) Driver Air Bag Feed
3 615 (GY/W) Driver Air Bag Return
4 616 (PK/BK) Passenger Air Bag Return
5 607 (LB/O) Passenger Air Bag Feed
6 298 (P/O) Ignition
7 — Not Used
8 — Not Used
9 — Not Used
10 57 (BK) Ground
11 608 (BK/Y) Air Bag Indicator Control
12 — Not Used
13 937 (R/W) Battery
14 937 (R/W) Battery
15 619 (PK/W) LH Radiator Primary Crash Sensor Feed
16 617 (PK/O) RH Radiator Primary Crash Sensor Feed
17 631 (T/R) Memory Clear
18 57 (BK) Ground
19 640 (R/Y) Lamp Ignition
20 620 (P/LB) LH Radiator Primary Crash Sensor Ground Monitor
21 618 (P/LG) RH Radiator Primary Crash Sensor Ground Monitor
22 — Not Used
23 625 (Y/LG) LH Radiator Primary Crash Sensor Monitor
24 624 (Y/W) RH Radiator Primary Crash Sensor Monitor



AIR BAG DIAGNOSTIC MONITOR TYPICAL PIN VOLTAGES
WITH SYSTEM CONNECTED AND ENGINE RUNNING
Pin 9.0 9.5 10.0 10.5 11.0 11.5 12.0
1 NC NC NC NC NC NC NC
2 1.5 1.6 1.7 1.8 1.9 2.0 2.1
3 1.5 1.6 1.7 1.8 1.9 2.0 2.1
4 1.5 1.6 1.7 1.8 1.9 2.0 2.1
5 1.5 1.6 1.7 1.8 1.9 2.0 2.1
6 9.0 9.5 10.0 10.5 11.0 11.5 12.0
7 NC NC NC NC NC NC NC
8 NC NC NC NC NC NC NC
9 NC NC NC NC NC NC NC
10 0.0 0.0 0.0 0.0 0.0 0.0 0.0
11 9.0 9.5 10.0 10.5 11.0 11.5 12.0
12 NC NC NC NC NC NC NC
13 9.0 9.5 10.0 10.5 11.0 11.5 12.0
14 9.0 9.5 10.0 10.5 11.0 11.5 12.0
15 8.6 9.1 9.6 10.1 10.6 11.1 11.6
16 8.6 9.1 9.6 10.1 10.6 11.1 11.6
17 5.0 5.0 5.0 5.0 5.0 5.0 5.0
18 0.0 0.0 0.0 0.0 0.0 0.0 0.0
19 9.0 9.5 10.0 10.5 11.0 11.5 12.0
20 0.0 0.0 0.0 0.0 0.0 0.0 0.0
21 0.0 0.0 0.0 0.0 0.0 0.0 0.0
22 NC NC NC NC NC NC NC
23 8.6 9.1 9.6 10.1 10.6 11.1 11.6
24 8.6 9.1 9.6 10.1 10.6 11.1 11.6

NC = No harness connection




Pin 12.5 13.0 13.5 14.0 14.5 15.0 15.5 16.0
1 NC NC NC NC NC NC NC NC
2 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9
3 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9
4 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9
5 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9
6 12.5 13.0 13.5 14.0 14.5 15.0 15.5 16.0
7 NC NC NC NC NC NC NC NC
8 NC NC NC NC NC NC NC NC
9 NC NC NC NC NC NC NC NC
10 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
11 12.5 13.0 13.5 14.0 14.5 15.0 15.5 16.0
12 NC NC NC NC NC NC NC NC
13 12.5 13.0 13.5 14.0 14.5 15.0 15.5 16.0
14 12.5 13.0 13.5 14.0 14.5 15.0 15.5 16.0
15 12.1 12.6 13.1 13.6 14.1 14.6 15.1 15.6
16 12.1 12.6 13.1 13.6 14.1 14.6 15.1 15.6
17 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0
18 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
19 12.5 13.0 13.5 14.0 14.5 15.0 15.5 16.0
20 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
21 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
22 NC NC NC NC NC NC NC NC
23 12.1 12.6 13.1 13.6 14.1 14.6 15.1 15.6
24 12.1 12.6 13.1 13.6 14.1 14.6 15.1 15.6

NC = No harness connection




Air Bag Diagnostic Monitor Diagnostic Trouble Code Priority Table
Priority Code Component/Fault Description
Highest — No Air Bag Indicator - Inoperative Indicator Circuit
— Continuous Air Bag Indicator - Diagnostic Trouble Code Timed Out, Diagnostic Monitor Disconnected or Inoperative, or No Ignition Voltage to Diagnostic Monitor.
  12 Low Battery Voltage
  13 Air Bag Circuit Shorted to Ground
  14 Primary Crash Sensor Circuit Shorted to Ground
  21 Diagnostic Monitor Not Mounted to Vehicle Properly
  22 Safing Sensor Output Circuit Shorted to Battery Voltage
  23 Memory Clear Circuit Improperly Grounded
  24 System Disarm Failure or Internal Diagnostic Monitor Fault
  32 Driver Side Air Bag Circuit High Resistance or Open
  33 Passenger Side Air Bag Circuit High Resistance or Open
  34 Driver Side Air Bag Circuit Low Resistance or Shorted
  35 Passenger Side Air Bag Circuit Low Resistance or Shorted
  41 Right Radiator Primary Crash Sensor Feed/Return Circuit Open
  42 Left Radiator Primary Crash Sensor Feed/Return Circuit Open
  44 Right Radiator Crash Sensor Not Mounted to Vehicle Properly
  45 Left Radiator Crash Sensor Not Mounted to Vehicle Properly
  52 Intermittent or Repaired Low Battery Voltage
  53 Intermittent or Repaired Air Bag Circuit Shorted to Ground
  54 Intermittent or Repaired Primary Crash Sensor Circuit Shorted to Ground
  61 Intermittent or Repaired Diagnostic Monitor Not Mounted to Vehicle Properly
  62 Intermittent or Repaired Safing Sensor Output Circuit Shorted to Battery Voltage
  63 Intermittent or Repaired Memory Clear Circuit Improperly Grounded
  64 Intermittent or Repaired System Disarm Failure or Internal Diagnostic Monitor Fault
  72 Intermittent or Repaired Driver Side Air Bag Circuit High Resistance or Open
  73 Intermittent or Repaired Passenger Side Air Bag Circuit High Resistance or Open
  74 Intermittent or Repaired Driver Side Air Bag Circuit Low Resistance or Shorted
  75 Intermittent or Repaired Passenger Side Air Bag Circuit Low Resistance or Shorted
  81 Intermittent or Repaired Right Radiator Primary Crash Sensor Feed/Return Circuit Open
  82 Intermittent or Repaired Left Radiator Primary Crash Sensor Feed/Return Circuit Open
  84 Intermittent or Repaired Right Radiator Primary Crash Sensor Not Mounted to Vehicle Properly
  85 Intermittent or Repaired Left Radiator Primary Crash Sensor Not Mounted to Vehicle Properly
Lowest — Rapid Continuous Flashing of Air Bag Indicator (No Diagnostic Trouble Code) - Both Primary Crash Sensors Disconnected - Assembly Plant Mode
