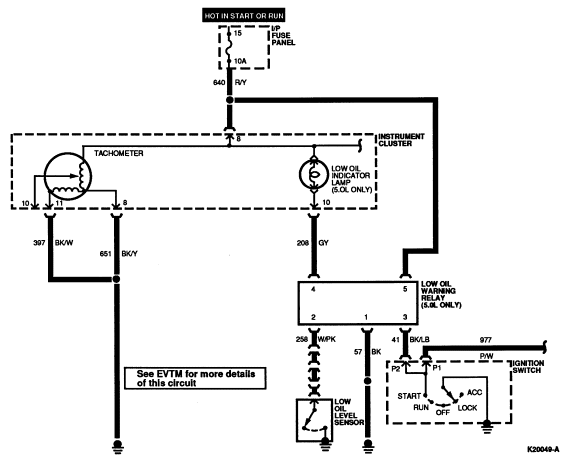

Section 13-09A: Gauges, Warning Devices—Low Oil Level Indication System | 1994 Mustang Workshop Manual |
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 2 (W/LB) | Right Turn Indicator |
| 2 | 794 (LB) | Low Coolant Indicator Feed |
| 3 | 608 (BK/Y) | Air Bag Indicator Feed |
| 4 | 128 (P/Y) | Brake Indicator Feed |
| 5 | 603 (DG) | Anti-Lock Indicator Feed |
| 6 | 397 (BK/W) | Ground |
| 7 | 11 (T/Y) | Tachometer Feed |
| 8 | 651 (BK/Y) | Ground |
| 9 | 640 (R/Y) | 12 Volt Input |
| 10 | 208 (GY) | Low Oil Indicator |
| 11 | 19 (LB/R) | Illumination Lamps Feed |
| 12 | 450 (DG/LG) | Fasten Belts Indicator |
| 13 | 640 (R/Y) | 12 Volt Input |
| 14 | 875 (BK/LB) | Ground |
| 15 | 31 (W/R) | Oil Pressure Gauge Feed |
| 16 | 57 (BK) | Ground |
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 57 (BK) | Ground |
| 2 | 258 (W/PK) | Low Oil Level Sensor |
| 3 | 41 (BK/LB) | Ignition Start Input |
| 4 | 208 (GY) | Check Oil Indicator Feed |
| 5 | 640 (R/Y) | 12 Volt Input |
