^a Air gap spec for A/C compressor is 0.35-0.85mm.
^b A/C cyclic switch opens at 169 kPa (24.5 psi) for all engines.


Refrigerant System

Description	Specifications (Ford Part Number)
A/C Cyclic Switch	Close Max. 47 psi (324 kPa) Open Max. 23 psi (159 kPa)
A/C System Fluids
R-134a Refrigerant	WSH-M17B19-A (Motorcraft YN-11)
A/C Compressor Oil	WSH-M1C231-B (Ford F2AZ-19577-AB, Motorcraft YN-12)

Electrical System

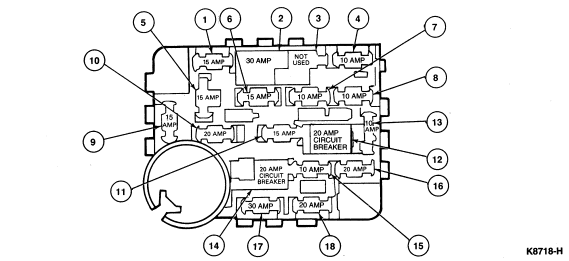

Cavity Number	Fuse Rating	Color	Circuit Protected
1	15 Amp	Light Blue	Turn Signal Lamps Turn Signal Cluster Indicator Lamp Back-Up Lamps Air Bag Diagnostic Monitor DRL Module, IGN Power Illuminated Entry Actuator Shut Off Power Heated Back Window Control Relay Coil in Switch Convertible Top Relay Coil Heated Back Window Defrost Relay Coil in Switch Transmission Control Switch Brakeshift Interlock Signal Feed
2	30 Amp	Light Green	Windshield Wiper—High Washer Pump
3	—	—	Not Used
4	10 Amp	Red	Air Bag Diagnostic Monitor
5	15 Amp	Light Blue	Warning Chime (Headlamp On) Clock Front Park Lamps Rear Tail Lamps License Plate Lamps Rear Side Marker Lamps Fuse 13
6	15 Amp	Light Blue	Clock—Display Speed Control Amplifier Warning Chime Module A/C Clutch Coil Door Lock Control Processor Anti-Theft Alarm Control
7	10 Amp	Red	Anti-Lock Brake Control Module Low Oil Relay
8	10 Amp	Red	Power Mirror Motor Radio Memory Courtesy Lamp Switch (Door Open Signal) Clock Operation Door Lock Control Processor Battery Save/Power Dome Lamp Map Lamp Luggage Compartment Door Lamp Visor Vanity Lamps Engine Compartment Lamp Glove Compartment Lamp Warning Chime (Key-In/Headlamp On)
9	15 Amp	Light Blue	Hazard Lamps-Front Hazard Lamps-Rear Hazard Cluster Indicator Lamps Stop Lamps High Mount Rear Lamp Brakeshift Interlock Solenoid
10	20 Amp	Yellow	H02S Sensors (5.0L)
11	15 Amp	Light Blue	Radio
12	20 Amp C.B.	—	Luggage Compartment Door Remote Control Door Lock Control Processor Power Door Locks
13	10 Amp	Red	Clock Illumination Radio Illumination Heated Back Window Switch—Illumination Instrument Cluster Illumination A/C Heater Control Illumination Transmission Range Indicator Lamp Illumination Ash Receptacle Lamp Illumination Fog Lamp Switch—Illumination
14	20 Amp C.B.	—	Power Windows
15	10 Amp	Red	Air Bag Indicator Lamp Air Bag Diagnostic Monitor Low Oil Relay Fuel Gauge Temperature Gauge Instrument Gauge Amplifier Module Transmission Control Indicator Lamp Malfunction Indicator (Check Engine) Lamp Speedometer Anti-Theft Lamp Gauge Oil Gauge Low Oil Level Lamp (5.0L) Tachometer Anti-Lock Brake Indicator Lamp Parking Brake Lamp Low Coolant Lamp (5.0L) Low Coolant Switch (5.0L) Seat Belt Warning Lamp/Chime
16	20 Amp	Yellow	Headlamp Flash-to-Pass Anti-Theft Alarm Control Module
17	30 Amp	Light Green	AC-Heater Blower Motor
18	20 Amp	Yellow	3.8L CCRM Power Ignition Coil Charging System Warning Lamp Regulator Signal 5.0L CCRM Power Ignition Coil Charging System Warning Lamp Transmission Control Switch Module Ignition Control Module Regulator Signal

Spring Lock Coupling Components

Part Number	Description
391302-S100	O-Ring Seals 3/8 inch
391303-S100	O-Ring Seals 1/2 inch
391304-S100	O-Ring Seals 5/8 inch
391305-S100	O-Ring Seals 3/4 inch
E1ZZ-19E576-A (YF-990)	Garter Springs 3/8 inch
E1ZZ-19E576-A (YF-991)	Garter Springs 1/2 inch
E35Y-19E576-A (YF-1134)	Garter Springs 5/8 inch
E1ZZ-19E576-A	Garter Springs 3/4 inch
Service Kits
E35Y-19D690-D	Contains 391302, 391303, 391304, 391305 O-Ring Seals.
E35Y-19D690-D	E1ZZ-19E576-A & B and E35Y-19E576-A Springs

Torque Specifications

Description	N-m	Lb-Ft
A/C Clutch Retaining Bolts	20-30	14.8-22.1
A/C Manifold and Tube to A/C Compressor Bolt	17-23	12.5-17.0
Refrigerant Hose Fittings
Suction Accumulator/Drier-to-Compressor Hose (at A/C Compressor)	28-36	21-26
A/C Compressor-to-Condensor Discharge Line (at A/C Compressor)	20-27	15-19
A/C Cyclic Switch to Accumulator Nipple	Hand	Tighten
Condensor-to-Evaporator Tube (at A/C Evaporator Core)	15-18	12-13
Suction Accumulator/Drier (at A/C Evaporator Core)	28-36	21-26
Suction Line at Accumulator	28-36	21-26
A/C Condenser Core Bracket to Radiator
Support (Screw)	8-14	6-10
A/C Evaporator Core Orifice	88-94	65-65
A/C Condenser Core to Bracket (Nut)	16-24	12-17
Heater Water Hose Clamps	1.8-2.5	16-22 (Lb-In)

---
