Section 12-03A: Air Conditioning System—Manual A/C-Heater
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Heater Air Plenum Chamber



Removal and Installation

  1. Remove instrument panel (04320) and lay it on front seat. Refer to Section 01-12.
  1. Remove one screw retaining heater air plenum chamber (18471) to instrument panel reinforcements.
  1. Remove one screw retaining heater air plenum chamber to defroster nozzle.
  1. Remove two screws retaining heater air plenum chamber to instrument panel. Remove heater air plenum chamber from vehicle.
  1. To install, reverse Removal procedure.


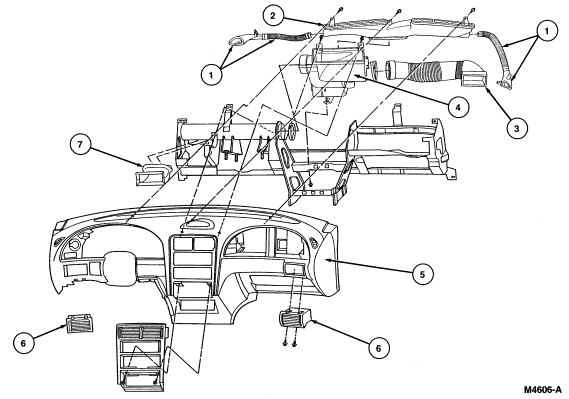

Heater Air Plenum Chamber





Item Part Number Description
1 19E63 RH and LH A/C Side Window Demister and Hose
2 18490 Windshield Defroster Hose Nozzle
3 19B680 RH A/C Evaporator Register Duct
4 18471 Reverse Clutch Drum
5 04320 Instrument Panel
6 19893 LH and RH A/C Register
7 19B680 LH A/C Evaporator Register Duct
