Ignition Coil

Removal

1. Disconnect battery ground cable (14301) .

2. Disconnect engine control sensor wiring connector from ignition coil (12029) and radio ignition interference capacitor (18801) .

3. Remove ignition wires by squeezing locking tabs to release ignition coil boot retainers.

4. Remove ignition coil retaining screws and remove ignition coil and radio ignition interference capacitor .

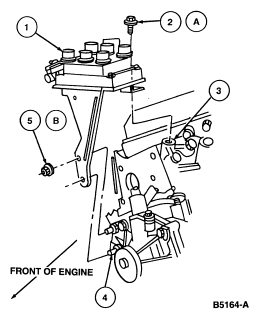

   Item	Part Number	Description
   1	12029	Ignition Coil
   2A	M8 X 1.25 X 26	Bolt
   3	9424	Lower Intake Manifold
   4	6019	Engine Front Cover
   5B	M8 X 1.25 X 7.6	Nut (2 Req'd)
   A		Tighten to 4.0-5.7 Nm (40-61 Lb-In)
   B		Tighten to 20-30 Nm (15-22 Lb-Ft)

Installation

1. Install ignition coil and radio ignition interference capacitor and retaining screws. Tighten retaining screws to 4.5-7.0 Nm (40-61 lb-in).

2. Connect ignition wires. Refer to ignition wiring routing illustration. Connect engine control sensor wiring connector to ignition coil and radio ignition interference capacitor .

3. Connect battery ground cable .
