Section 01-20A: Restraints, Active
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Safety Belts, Front Seats

SPECIAL SERVICE TOOL(S) REQUIRED
Description Tool Number
Seat Belt Bolt Bit (#50 Torx) T77L-2100-A

Seat Belt Bolt Bit (#50 Torx) T77L-2100-A should be used for removal and installation of the safety belt bolts on all safety belt assemblies.



Outboard, Sedan

Removal

  1. Remove safety belt anchor-to-sill bolt and rubber washer.
  1. Slip finger behind D-ring cover and push bottom of cover toward center of vehicle to dislodge. Lift up to remove cover and remove retaining bolt.
  1. Remove rear seat lower cushion and rear seat back cushions. Refer to Section 01-10.
  1. Remove the upper and lower quarter trim panels (31012) and unthread safety belt from slot in quarter trim panel . Refer to Section 01-05 for quarter trim panel removal.
  1. Remove retractor retaining bolt and remove front safety belt retractor and tongue (611B08) assembly.


Installation

  1. Position the retractor to the sheet metal.
  1. Install the attaching bolt. Tighten to 30-40 Nm (23-29 lb-ft).
  1. Put the safety belt through the slot in the quarter trim panel .
  1. Put a one-half twist in the safety belt webbing (clockwise on RH belt and counterclockwise on LH belt).
  1. Install the attaching bolt. Tighten to 30-40 Nm (23-29 lb-ft).
  1. Cycle the system several times to ensure proper operation of retractor. Ensure belt is not twisted.

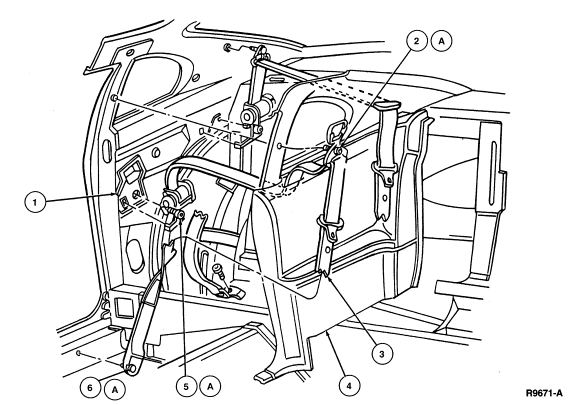

    Item Part Number Description
    1 27840 Quarter Panel
    2A 386276-S100 Bolt
    3 611B08 RH Front Safety Belt Retractor and Tongue
    4 31012 Quarter Trim Panel
    5A 389370-S100 Bolt
    6A 386277-S100 Bolt
    A Tighten to 30-40 Nm (23-29 Lb-Ft)


Outboard, Convertible

Removal and Installation

  1. Position safety belt sill retractor trim cover out of the way.
  1. Remove safety belt anchor-to-sill bolt and rubber washer.
  1. Remove lower seat cushion and rear seat back cushion. Refer to Section 01-10.
  1. Remove quarter trim panel and unthread safety belt from slot in quarter trim panel . Refer to Section 01-05 for quarter trim panel removal.
  1. Remove retractor retaining bolt and remove front safety belt retractor and tongue assembly.
  1. If necessary, remove two bolts and one nut retaining upper front safety belt retractor bracket (611C34) to quarter panel (27840) and remove bracket.
  1. To install, reverse Removal procedure. Tighten all safety belt bolts and nuts to 30-40 Nm (23-29 lb-ft). Cycle the system several times to ensure proper operation of retractors. Ensure belt is not twisted.

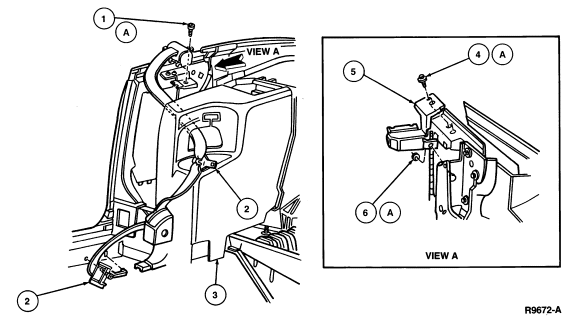

    Front Seat Outboard Safety Belts For Convertible





    Item Part Number Description
    1A 389370-S100 Bolt (2 Req'd)
    2 611B08 Front Safety Belt Retractor and Tongue
    3 31012 Quarter Trim Panel
    4A N800935-S36 Bolt (2 Req'd)
    5 611C34
    6A N800251-S36 Nut
    A Tighten to 30-40 Nm (23-29 Lb-Ft)


Inboard

Removal and Installation

  1. Position front seat forward to access front safety belt buckle end (61202) .
  1. Remove anchor retaining bolt. On LH side, disconnect safety belt warning chime connector.
  1. To install, reverse Removal procedure. Tighten anchor bolts to 30-40 Nm (23-29 lb-ft).

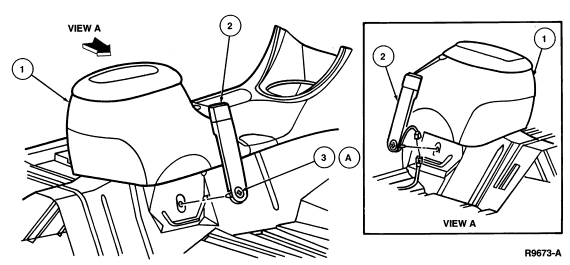

    Front Seat Inboard Safety Belts, All Vehicles





    Item Part Number Description
    1 045A36 Console Panel
    2 61202 Front Safety Belt Buckle End
    3A 386277-S101 Bolt
    A Tighten to 30-40 Nm (23-29 Lb-Ft)
