Section 01-14B: Door Lock Control System, Electronic
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Door Lock Control Processor, Electronic



Removal and Installation

  1. Open luggage compartment door (40110) .
  1. Remove LH side luggage compartment trim panel and locate electronic door lock control processor (14B001) in LH relay mounting panel (14B144) .
  1. Disengage retaining tabs on relay mounting panel and lower relay mounting panel.
  1. Remove the electronic door lock control processor from the relay mounting panel .
  1. Disconnect three connectors and antenna connector.
  1. To install, reverse Removal procedure.

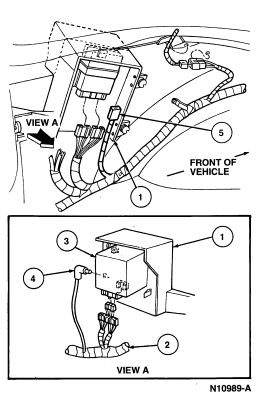

Electronic Door Lock Control Processor





Item Part Number Description
1 14B144 Mounting Panel (Part of 14B001)
2 14A005 Body Main Wiring
3 14B001 Electronic Door Lock Control Processor
4 — Antenna Cable (Part of 14A005)
5 — Program Connector
