Description and Operation

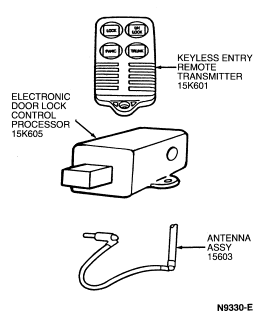

The electronic door lock control system has three main components:

• The electronic door lock control processor (14B001), located on the LH side of the luggage compartment.
• The antenna located under the quarter trim panel (31012) .
• The four-button (hand held) keyless entry remote transmitter (15K601) .

The electronic door lock control processor performs the following functions:

• Unlocks driver's front door (20125) .
• Unlocks all doors.
• Unlocks luggage compartment door (40110) .
• Locks all doors.
• Arms and disarms anti-theft alarm system (if equipped).
• Turns on interior lamps (13776) when front door handle (22404) is lifted.
• Turns on interior lamps when using the keyless entry remote transmitter .
• Activates and deactivates security feature which sounds horn (13832) and flashes parking lamps (13200).
• Activates battery saver feature which removes power from convenience lamps and interior lamps 45 minutes after last input to electronic door lock control processor .

The electronic door lock control processor will also accept and store a temporary alternate entry code. Either code will then operate the system.

Item	Part Number	Description
1	14B144	Mounting Panel
2	14A005	Main Wiring Harness
3	15K602	Electronic Door Lock Control Processor
4	—	Antenna Cable (Part of 14A005)
5	—	Program Connector
