Section 01-14A: Handles, Locks, Latches and Mechanisms
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Lock Cylinder, Luggage Compartment Door



Removal and Installation

  1. Open luggage compartment door (40110) .
  1. Disconnect luggage compartment door lock actuator (432A38) from luggage compartment door lock cylinder plate (43627) .
  1. Remove center pin from rivet using a small drift punch. Drill out remainder of rivet using a drill. Be careful not to enlarge retaining hole in sheet metal.
  1. Remove door lock cylinder (21985) and gasket.
  1. To install, reverse Removal procedure.

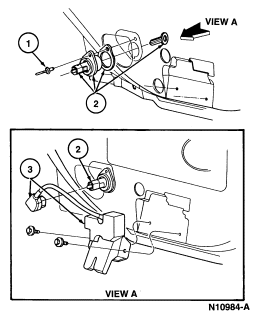

    Item Part Number Description
    1 372820-S2 Rivet
    2 21985 Door Lock Cylinder
    3 — Actuator Cable (Part of 43200)
