Section 01-14A: Handles, Locks, Latches and Mechanisms
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Remote Control Assembly



Removal and Installation

  1. Remove remote trim cup.
  1. Remove front door trim panel (23942) and watershield. Refer to Section 01-05.
  1. Remove rivet retaining front door latch remote control and link (21818) to door (405A26) . Slide rearward to disengage from inner panel slots.
  1. Disengage link cable from front door latch remote control and link .
  1. To install, reverse Removal procedure.

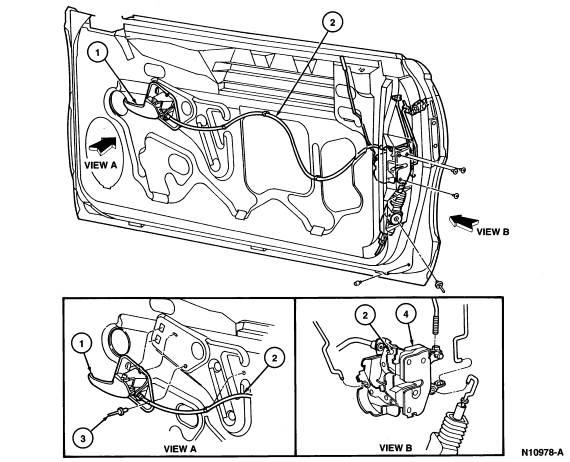

    Item Part Number Description
    1 21818 Front Door Latch Remote Control Link
    2 21940 Front Door Latch Remote Control and Link Cable
    3 WS25174-S Rivet
    4 21812 Front Door Latch
