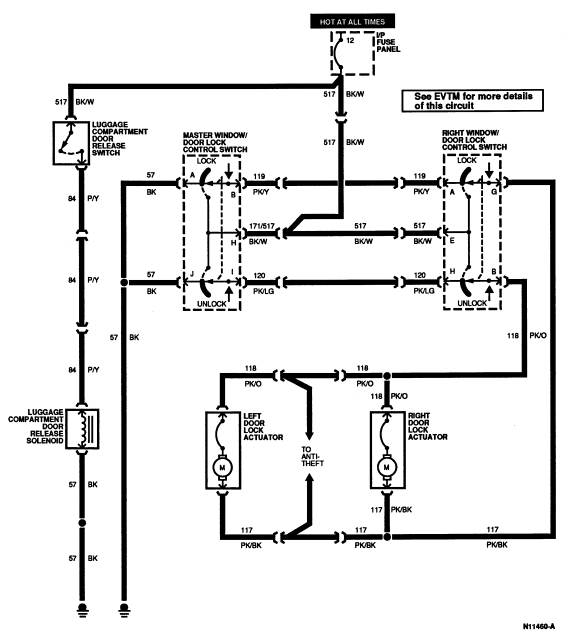

Section 01-14A: Handles, Locks, Latches and Mechanisms | 1994 Mustang Workshop Manual |
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 57 (BK) | Ground (Window Control Switch) |
| 2 | 120 (PK/LG) | Door Lock Motors |
| 3 | 171 (BK/W) | 12V Power Feed |
| 4 | 119 (PK/Y) | Door Lock Motors |
| 5 | 57 (BK) | Ground (Window Control Switch) |
| 6 | 227 (Y) | Left Front Window Motor |
| 7 | 313 (W/Y) | Right Front Window Motor |
| 8 | 226 (W/BK) | Left Front Window Motor |
| 9 | 314 (T/LB) | Right Front Window Motor |
| 10 | 317 (GY/O) | Left Rear Window Motor |
| 11 | 320 (R/BK) | Right Rear Window Motor |
| 12 | 316 (Y/LB) | Left Rear Window Motor |
| 13 | 319 (Y/BK) | Right Rear Window Motor |
| 14 | 57 (BK) | Ground (Door Lock Switch) |
| 15 | 400 (LB/BK) | 12V Power Feed |
| 16 | 170 (R/LB) | Window Lock Switch Output |
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 57 (BK) | Ground (Window Control Switch) |
| 2 | 120 (PK/LG) | Door Lock Motors |
| 3 | 517 (BK/W) | 12V Power Feed |
| 4 | 119 (PK/Y) | Door Lock Motors |
| 5 | 57 (BK) | Ground (Door Lock Switch) |
| 6 | 226 (W/BK) | Left Front Window Motor |
| 7 | 57 (BK) | Ground Circuit |
| 8 | 314 (T/B) | Right Front Window Motor |
| 9 | 57 (BK) | Ground (Window Control Switch) |
| 10 | 194 (PK) | 12V Power Feed |
| 11 | 194 (PK) | 12V Power Feed |
| 12 | 57 (BK) | Ground (Window Control Switch) |
| 13 | 227 (Y) | Left Front Window Motor |
| 14 | 57 (BK) | Ground Circuit |
| 15 | 313 (W/Y) | Right Front Window Motor |
| Pin Number | Circuit | Circuit Function |
|---|---|---|
| 1 | 119 (PK/Y) | Door Lock Motors |
| 2 | 117 (PK/BK) | Door Lock Motors |
| 3 | 517 (BK/W) | 12V Power Feed |
| 4 | 118 (PK/O) | Door Lock Motors |
| 5 | 120 (PK/LG) | Door Lock Motors |
| 6 | 334 (R/Y) | Right Front Window Motor |
| 7 | 313 (W/Y) | Master Window/Door Lock Control Switch Input |
| 8 | 194 (PK) | 12V Power Feed |
| 9 | 314 (T/LB) | Master Window/Door Lock Control Switch Input |
| 10 | 333 (Y/R) | Right Front Window Motor |
