Wire Terminals

To remove an individual wire from its connector, it will first be necessary to remove the connectors from the instrument panel (04320) and/or the fuse circuit breaker panel.

To remove a wire from the connector, release the retaining tang from the wire terminal with a narrow screwdriver and pull the wire and terminal out of the connector. To install, push the terminal into the connector until the retaining tang snaps into the locking hole in the terminal.

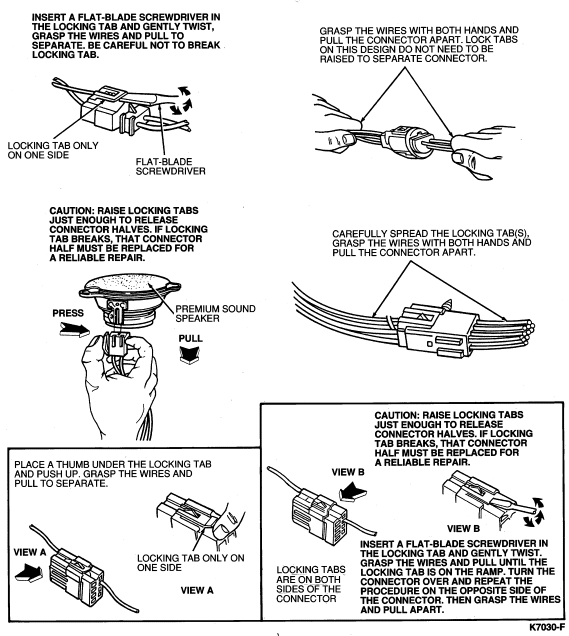

The following illustrations show typical electrical connectors and their disengagements.

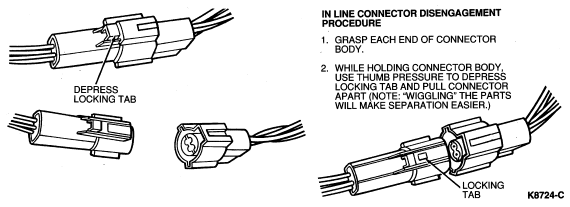

In-Line Connectors






Component Connectors

Item	Part Number	Description
1	13K359	Turn Signal and Windshield Wiper Switch
2	14401	Main Wiring
3	7G484	Shift Solenoid
4	3514	Steering Column Tube
5	11572	Ignition Switch

In-Line Connector, Submersible

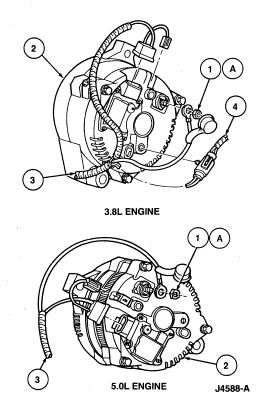

Generator Connectors

Item	Part Number	Description
1A	N805320-S	Nut
2	10300	Generator
3	14305	Generator Voltage Regulator Wiring
4	190887	A/C Jumper Wire
A		Tighten to 8.9-12.1 (79-107 Lb-In)

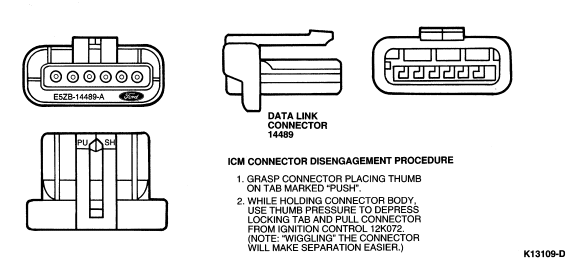

Ignition Control Module 12A297 Connectors
