Section 17-04: Lamps, Daytime Running
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Daytime Running Lights Control

 WARNING: DAYTIME RUNNING LIGHTS CONTROL (15A272) GETS VERY HOT DURING OPERATION. BE SURE DAYTIME RUNNING LIGHTS CONTROL HAS COOLED BEFORE HANDLING IT.



Removal and Installation

  1. Remove screws retaining front side of front fender splash shield (16102) .
  1. Disconnect DRL control electrical connector.
  1. Remove screw retaining daytime running lights control to front fender apron (16054) .
  1. To install, reverse Removal procedure. Tighten screws to 9-14 Nm (7-10 lb-ft).

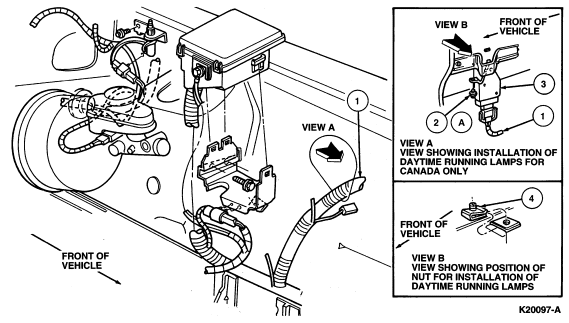

    Item Part Number Description
    1 14290 Headlamp Dash Panel Junction Wire
    2A N605892-S36 Screw
    3 15A272 Daytime Running Lights Control
    4 N800854-S100 Nut
    A Tighten to 9-14 Nm (7-10 Lb-Ft)
