Section 17-02: Lighting, Interior
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Lamp, Luggage Compartment
Removal and Installation
Open luggage compartment door (40110) and remove luggage compartment door trim panel. Refer to
Section 01-05
.

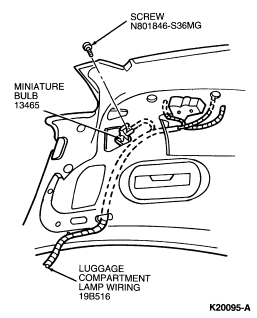

Remove screw retaining luggage compartment lamp (13A756) and pull luggage compartment lamp out.
Disconnect electrical connector and remove luggage compartment lamp assembly.
To install, reverse Removal procedure.
