Section 17-02: Lighting, Interior
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Illuminated Entry



Interior Lamp Switch

Refer to Section 01-14B.



Illuminated Entry Actuator

Removal and Installation

  1. Open luggage compartment door (40110) and remove LH luggage compartment side cover (45423) .
  1. Disengage locking tabs retaining illuminating entry actuator (13C718) to LH relay mounting panel (14B144) and disconnect electrical connector.
  1. To install, reverse Removal procedure.

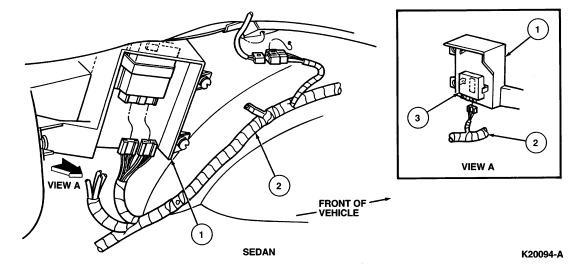

Illuminated Entry Actuator





Item Part Number Description
1 14B144 Relay Mounting Panel
2 14A005 Body Main Wiring
3 13C718 Illuminating Entry Actuator
