Section 17-01: Lighting, Exterior
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

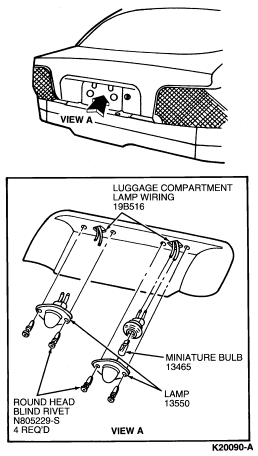

Lamp, License Plate



Removal and Installation

  1. Remove two round-head blind rivets from the lamp (13550) and pull the lamp down.
  1. Remove socket from the lamp .
  1. Pull miniature bulb (13465) from socket and replace with new miniature bulb .
  1. Install socket in the lamp and position the lamp on luggage compartment door (40110) .
  1. Insert blind rivets in retaining holes and push center pins in to lock rivets in place.
