Section 17-01: Lighting, Exterior
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Headlamp Switch



Removal and Installation

  1. Disconnect battery ground cable (14301) .
  1. Pull headlamp switch (11654) to full ON position.

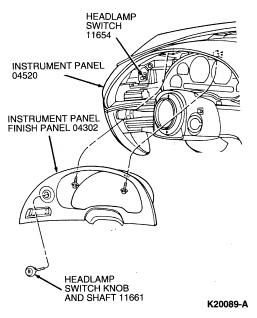

  1. Reaching through opening in instrument panel (04320) , depress shaft release button on headlamp switch and remove headlamp switch knob and shaft (11661) .
  1. Remove instrument panel . Refer to Section 01-12.
  1. Remove headlamp switch retaining nut and pull headlamp switch through opening in instrument cluster (10849) .
  1. Disconnect wiring to headlamp switch and remove headlamp switch .
  1. To install, reverse Removal procedure.
