Fog Lamp Switch

Removal and Installation

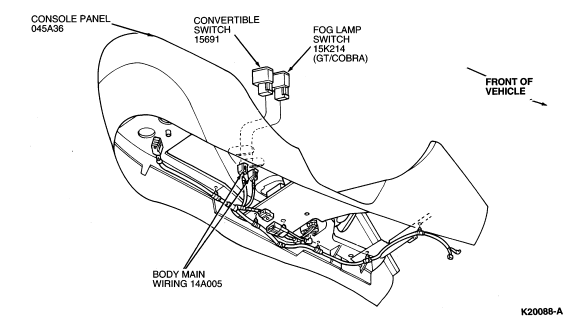

1. Carefully pry fog lamp switch (15A214) out of console panel (045A36) .

2. Disconnect electrical connector and remove fog lamp switch .

3. To install, reverse Removal procedure.





Fog Lamp Relay

Removal and Installation

The fog lamp relay (14N089) is located in the power distribution box and harness (14516) in the engine compartment.

1. Remove cover on power distribution box and harness .

2. Pull straight outward on fog lamp relay .

3. To install, align terminals and press into place.

4. Install cover.
