Section 15-03: Speakers
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Radio Speakers, Rear Quarter Trim Panel



Removal and Installation

  1. Remove rear seat. Refer to Section 01-10.
  1. Remove rear quarter trim panel (31012) .
  1. For base radio speakers (18808) , remove four retaining screws. For installation, tighten retaining screws to 1.8-2.6 Nm (15.9-23.0 lb-in).
  1. For subwoofer module radio speaker removal, remove two retaining screws for tweeter/midrange radio speaker and four screws for woofer radio speaker .
  1. For either base or subwoofer radio speakers , disconnect electrical connector(s) and remove radio speakers .
  1. To install, reverse Removal procedures.

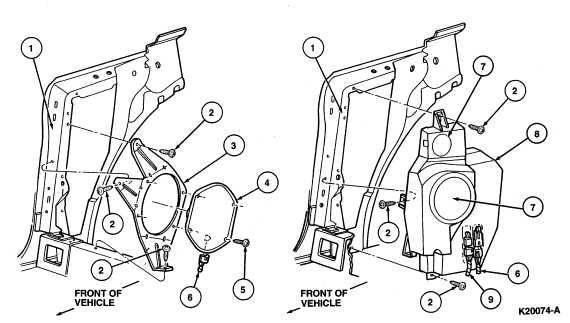

Base/Premium Radio Speakers and Subwoofer Module





Item Part Number Description
1 27840 Quarter Panel
2 N806272-S36 Screw (6 Req'd)
3 18963 RH Radio Speaker Mounting Plate
   18963 LH Radio Speaker Mounting Plate
4 18808 Radio Speaker
5 56921-S2 Screw (8 Req'd)
6 14A005 Body Main Wiring
7 18808 Radio Speaker
8 19A167 Subwoofer Enclosure
9 14A005 RH Body Main Wiring
   19B113 LH Radio Amplifier Wiring
