Section 15-03: Speakers
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Radio Speakers, Front Door



Removal and Installation

  1. Remove RH front door trim panel (23942) . Refer to Section 01-05.
  1. For lower radio speaker (18808) , remove the four retaining screws.
  1. Disconnect electrical connectors and remove radio speaker .
  1. To remove upper radio speaker , if so equipped, remove access cover.
  1. Remove two speaker-to-enclosure retaining screws.
  1. Disconnect electrical connector and remove radio speaker assembly.
  1. To install radio speakers , reverse Removal procedures.

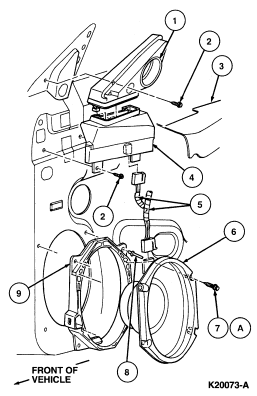

Front Door Speakers





Item Part Number Description
1 18808 Radio Speaker, RH
Radio Speaker, LH
2 N806224 Screw (3 Req'd)
3 23942 Front Door Trim Panel
4 — Radio Speaker Base Assembly (Part of 19A067)
5 19A041 Radio Speaker Wiring
6 18808 Radio Speaker
7A N806955 Screw (4 Req'd)
8 N804851 Rivet (2 Req'd)
9 18B947 Radio Speaker Mounting Spacer
A Tighten to 0.6-1.0 Nm (5.3-8.9 Lb-In)
