Section 15-01: Radio, Tape Chassis and Digital Audio Compact Disc Player
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

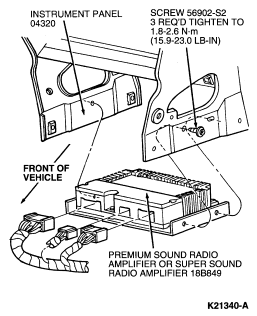

Radio Amplifier



Premium Sound

Removal and Installation

  1. Remove Instrument Panel Storage bin or CD player.
  1. Disconnect electrical connectors.
  1. Remove three screws retaining amp to Instrument Panel.
  1. To install, reverse Removal procedures.





Subwoofer

Convertible

NOTE: The convertible top needs to be in the up position to remove the subwoofer radio amplifiers (18B849) .



Removal and Installation

  1. From inside the luggage compartment, remove the pushpins retaining the forward panel and remove the forward panel.
  1. Disconnect the electrical connectors.
  1. Remove the retaining nuts.
  1. Remove the subwoofer radio amplifiers .
  1. To install, reverse Removal procedure. Tighten retaining nuts to 2.7-3.7 Nm (24-33 lb-in).

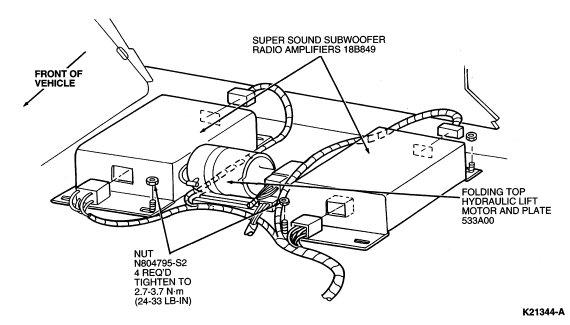

Subwoofer, Convertible






Coupe

Removal and Installation

  1. From inside the luggage compartment, remove the subwoofer amplifier electrical connectors.
  1. Remove the four retaining screws.
  1. Remove the super sound radio amplifier .
  1. To install, reverse Removal procedures.

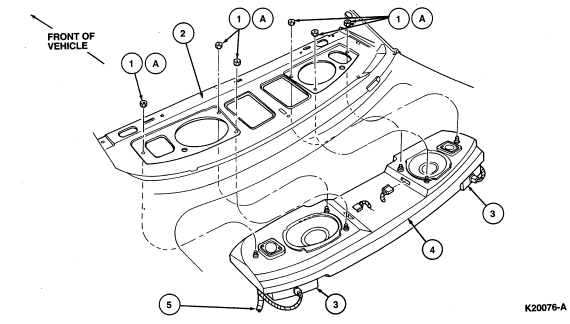

Subwoofer, Coupe





Item Part Number Description
1A N621906 Nut (6 Req'd)
2 46506 Package Tray Panel
3 18B849 Super Sound Subwoofer
4 18C804 Subwoofer Radio Speaker Assembly
5 14A005 Body Main Wiring
A Tighten to 3.4-4.8 Nm (30-42 Lb-In)
