Radio Frequency Interference Suppression Equipment

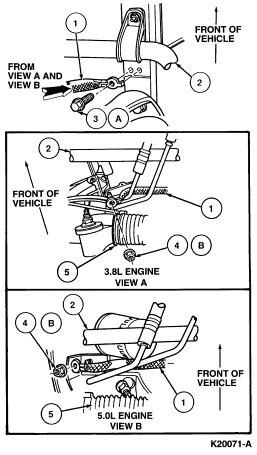

The following illustration shows the radio frequency interference suppression bond installations.

Radio Frequency Interference Suppression Bond Assembly

Removal and Installation

1. Remove retaining screw.

2. Remove retaining nut.

3. Remove radio frequency interference suppression bond (19A095) .

4. To install, reverse removal procedures and tighten retaining nut (5.0L) to 17-23 Nm (12.5-17.0 lb-ft). Tighten retaining screw to 10.2-13.8 Nm (7.5-10.2 lb-ft).

   Radio Frequency Interference Suppression Bond Assembly







   Item	Part Number	Description
   1	19A095	Radio Frequency Interference Suppression Bond
   2	5482	Front Stabilizer Bar
   3A	W611101-S36	Screw
   4B	N801650-S36	Nut
   5	3L547	Power Steering Short Rack
   A		Tighten to 10.2-13.8 Nm (7.5-10.2 Lb-Ft)
   B		Tighten to 17-23 Nm (12.5-17.0 Lb-Ft)
