Section 14-02: Generator, Integral Regulator—Internal Fan Type
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Integral Generator/Regulator



Removal

  1. Disconnect battery ground cable (14301) .
  1. Disconnect the wire harness attachments to the integral generator (GEN) (10300) / generator regulator (10316) . Pull the two connectors straight out.




    Item Part Number Description
    1A N805320S Nut
    2 10300 Generator
    3 14305 Generator Voltage Regulator Wiring
    4 19D887 A/C Jumper Wiring
    A Tighten to 9-12 Nm (80-106 Lb-In)
  1. Disengage the accessory drive belt (8620) from the generator pulley (10344) .
  1. Remove the generator mounting bolts and remove generator / generator regulator.


3.8L Engine

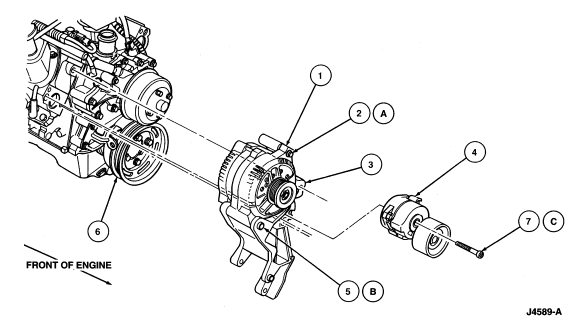

5.0L Engine





Item Part Number Description
1 10300 Generator
2A N807274-S36B Bolt
3 10153 Generator Mounting Bracket
4 6B209 Drive Belt Tensioner
5B N807241-S36B Bolt
6 6312 Crankshaft Pulley
7C 391410S36B Bolt
A Tighten to 21-29 Nm (16-21 Lb-Ft)
B Tighten to 40-55 Nm (30-40 Lb-Ft)
C Tighten to 29.7-40.3 Nm (22-30 Lb-Ft)


Installation

  1. Position the integral generator / generator regulator on the engine.
  1. Install the generator mounting bolts. Tighten upper mounting bolt to 21-29 Nm (16-21 lb-ft). Lower mounting bolt to 40-55 Nm (30-40 lb-ft).
  1. Install the accessory drive belt over the generator pulley .
  1. Connect the engine control sensor wiring (12A581) to the generator / generator regulator . Tighten output terminal nut to 9-12 Nm (80-106 lb-in).
  1. Connect battery ground cable .
