Section 13-11: Anti-Theft Alarm System
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Anti-Theft Alarm Control



Removal and Installation

  1. Disconnect battery ground cable (14301) .
  1. Open the luggage compartment door (40110) . Remove trim from LH side of luggage compartment.
  1. Disconnect electrical converters from anti-theft alarm control (19A366) .
  1. Remove anti-theft alarm control by pushing on the panel retaining ramp below the anti-theft alarm control while sliding the anti-theft alarm control down.
  1. To install, reverse Removal procedure. Test system for proper operation.

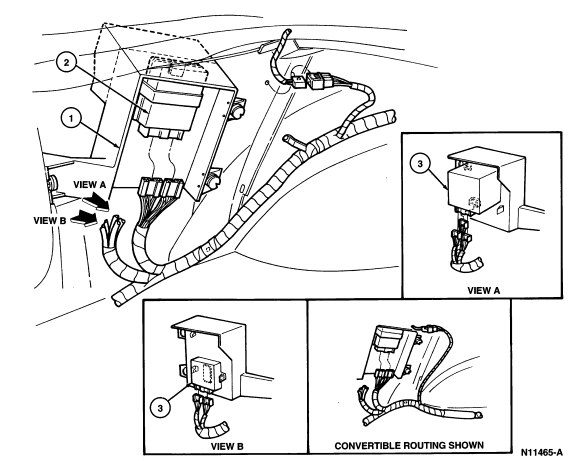

    Item Part Number Description
    1 14B144 Relay Mounting Panel
    2 19A366 Anti-Theft Alarm Control
    3 15K602 Remote Keyless Entry Module (Is On Other Side Of 14B144)
