Section 13-07: Clock
1994 Mustang Workshop Manual
DIAGNOSIS AND TESTING

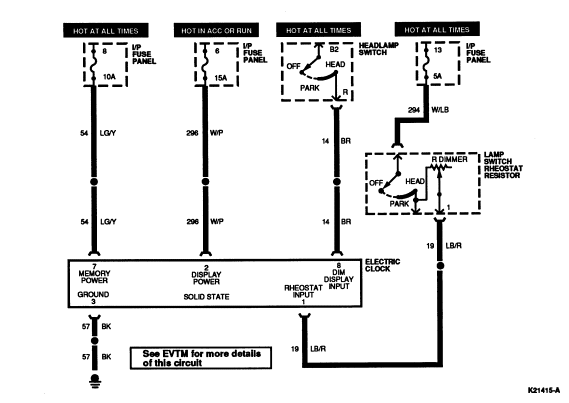

Electrical Schematic
Clock
Connector End View
Pin Number
Circuit
Circuit Function
1
19 (LB/R)
Rheostat Input
2
296 (W/P)
Display Power
3
57 (BK)
Ground
4
—
Not Used
5
—
Not Used
6
—
Not Used
7
54 (LG/Y)
Memory Power
8
14 (BR)
Display Input
