Section 06-09: Brake System, Anti-Lock
1994 Mustang Workshop Manual
DIAGNOSIS AND TESTING

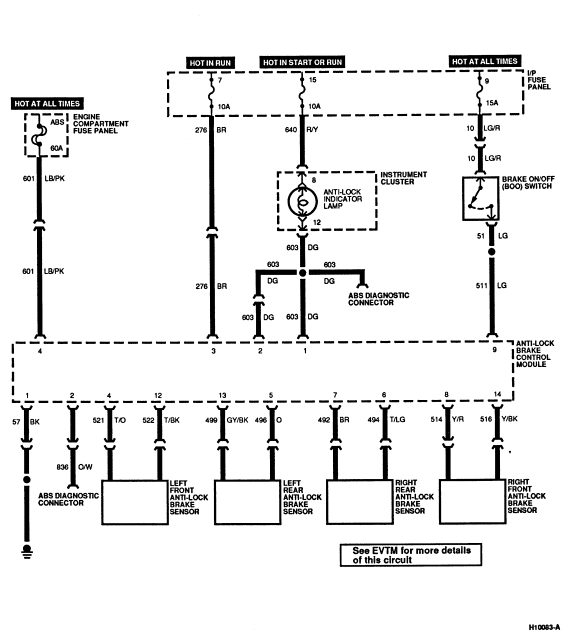

Electrical Schematic

NOTE: On early production vehicles: Circuit 601 may change color from LB\PK to R as it passes through the harness connector. Circuit 603 may change color from DG to Y as it passes through the harness connector.



Anti-Lock Brake System (ABS)






Connector End Views






Pin Number Circuit Circuit Function
1 Not Used
2 522 (T/BK) Left Front Anti-Lock Brake Sensor Ground
3 514 (Y/R) Right Front Anti-Lock Brake Sensor
4 499 (GY/BK) Left Rear Anti-Lock Brake Sensor Ground
5 Not Used
6 521 (T/O) Left Front Anti-Lock Brake Sensor
7 496 (O) Left Rear Anti-Lock Brake Sensor
8 494 (T/LG) Right Rear Anti-Lock Brake Sensor Ground
9 Not Used
10 Not Used
11 836 (O/W) Diagnostic K
12 492 (BR) Right Rear Anti-Lock Brake Sensor
13 603 (DG) Anti-Lock Output
14 511 (LG) Brake On/Off Switch Input
15 Not Used
16 516 (Y/BK) Right Front Anti-Lock Brake Sensor Ground







Pin Number Circuit Circuit Function
1 603 (DG) Anti-Lock Indicator Output
2 511 (LG) Brake On/Off (BOO) Switch Input
3 836 (O/W) Diagnostic K
4 571 (BK/O) Not Used
5 Not Used
6 Not Used
7 521 (T/O) Left Front Anti-Lock Brake Sensor
8 522 (T/BK) Left Front Anti-Lock Brake Sensor Ground
9 496 (O) Left Rear Anti-Lock Brake Sensor
10 499 (GY/BK) Left Rear Anti-Lock Brake Sensor Ground
11 494 (T/LG) Right Rear Anti-Lock Brake Sensor Ground
12 516 (Y/BK) Right Front Anti-Lock Brake Sensor Ground
13 492 (BR) Right Rear Anti-Lock Brake Sensor
14 Not Used
15 514 (Y/G) Right Front Anti-Lock Brake Sensor







Pin Number Circuit Circuit Function
1 57 (BK) Ground
2 603 (DG) Anti-Lock Indicator Output
3 276 (BR) "RUN" Power
4 601 (LB/PK) Battery Power
5 Not Used







Pin Number Circuit Circuit Function
1 Not Used
2 57 (BK) Ground
3 Not Used
4 603 (DG) Lamp Indicator
5 836 (O/W) Diagnostic K
6 Not Used
