Section 05-02A: Axle, Integral Carrier—7.5-Inch Ring Gear | 1994 Mustang Workshop Manual |
The Anti-Lock Brake System:

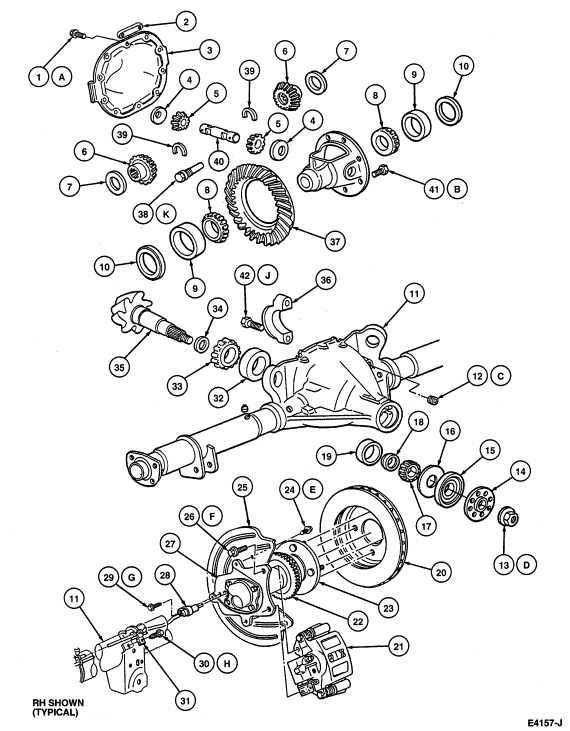

Components of Rear Anti-Lock Braking System (ABS) are:
| Item | Part Number | Description |
|---|---|---|
| 1A | 383548 | Bolt |
| 2 | 4033 | Axle Housing Cover |
| 3 | 2251 | Rear Axle Brake Line Clip |
| 4 | 4230 | Differential Pinion Thrust Washer |
| 5 | 4215 | Differential Pinion Gear |
| 6 | 4236 | Differential Side Gear |
| 7 | 4228 | Differential Side Gear Thrust Washer |
| 8 | 4221 | Differential Bearing |
| 9 | 4222 | Differential Bearing Cup |
| 10 | 4067 | Differential Bearing Shim |
| 11 | 4010 | Axle Housing |
| 12C | 373098-S | Filler Plug |
| 13D | 389546-S100 | Pinion Nut |
| 14 | 4851 | Rear Axle Universal Joint Flange |
| 15 | 4676 | Flange Yoke Seal |
| 16 | 4670 | Rear Axle Drive Pinion Shaft Oil Slinger |
| 17 | 4621 | Differential Pinion Bearing |
| 18 | 4662 | Differential Drive Pinion Bearing Spacer |
| 19 | 4616 | Differential Pinion Bearing Cup |
| 20 | 2C026 | Rear Disc Brake Rotor |
| 21 | 2552 | Rear Disc Brake Caliper |
| 22 | 2C189 | Rear Brake Anti-Lock Sensor Indicator |
| 23 | — | Axle Shaft Flange (Part of 4234) |
| 24E | N602726-S2 | Bolt (3 Req'd) |
| 25 | 2C028 | Rear Wheel Disc Brake Shield |
| 26F | N8015163-S190 | Caliper Anchor Bolt |
| 27 | 2C101 | Caliper Mounting Bracket |
| 28 | 2C190 | Rear Brake Anti-Lock Sensor |
| 29G | — | Bolt |
| 30H | N601951-S2 | Bolt |
| 31 | N804361-S100 | Clip |
| 32 | 4628 | Rear Axle Pinion Bearing Cup |
| 33 | 4630 | Rear Axle Pinion Bearing Cone and Roller |
| 34 | 4663 | Drive Pinion Bearing Adjustment Shim |
| 35 | — | Drive Pinion (Part of 4209) |
| 36 | — | Bearing Cap (Part of 4010) |
| 37 | — | Ring Gear (Part of 4209) |
| 38K | 4241 | Differential Pinion Shaft Lock Pin |
| 39 | 4N237 | Rear Axle Shaft Retaining U-Washer |
| 40 | 4211 | Differential Pinion Shaft |
| 41B | 4216 | Rear Axle Differential Gear Case Bolt |
| 42J | — | Bolt (Part of 4010) |
| A | Tighten to 38-52 Nm (28-38 Lb-Ft) | |
| B | Tighten to 95-115 Nm (71-85 Lb-Ft) | |
| C | Tighten to 38-52 Nm (28-38 Lb-Ft) | |
| D | Tighten to 190 Nm (140 Lb-Ft) | |
| E | Tighten to 8-12 Nm (5.9-8.8 Lb-Ft) | |
| F | Tighten to 87-119 Nm (64-87.7 Lb-Ft) | |
| G | Tighten to 4.5-6.8 Nm (3.5-5 Lb-Ft) | |
| H | Tighten to 10-14 Nm (7.3-10.3 Lb-Ft) | |
| J | Tighten to 95-115 Nm (71-85 Lb-Ft) | |
| K | Tighten to 20-41 Nm (15-30 Lb-Ft) |
