Bracket, Ignition Coil

1. Remove ignition coil (12029) and radio ignition interference capacitor (18801) as outlined.

2. Remove ignition coil mounting bracket retaining bolts and ignition coil mounting bracket from power steering pump support (3C511) .

3. To install, reverse Removal procedure. Tighten ignition coil mounting bracket retaining bolts to 14.8-20.2 Nm (11-15 lb-ft).

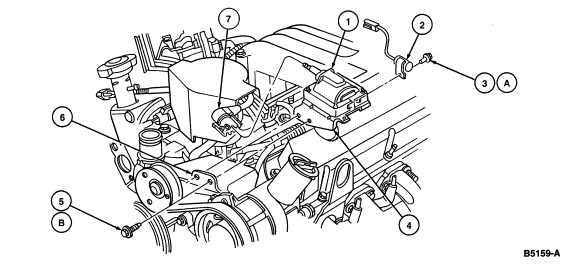

   Item	Part Number	Description
   1	12029	Ignition Coil
   2	18801	Radio Ignition Interference Capacitor
   3A	N806155-S2	Screw
   4	12A166	Ignition Coil Mounting Bracket
   5B	N605905-S36	Bolt (2 Req'd)
   6	3C511	Power Steering Pump Support
   7	12286	Ignition Wire
   A		Tighten to 11-15 Nm (25-35 Lb-Ft)
   B		Tighten to 2.8-4.0 Nm (25-35 Lb-In)
