Distributor Rotor

Removal

With distributor cap (12106) removed, pull distributor rotor (12200) upward to remove it from distributor shaft and armature.

Installation

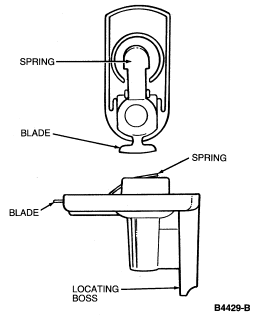

Align locating boss on distributor rotor with hole on armature. Fully seat distributor rotor on distributor shaft. Re-install distributor cap .
