Section 03-04A: Fuel Charging and Controls—3.8L | 1994 Mustang Workshop Manual |
The fuel injection supply manifold (9F792) is the component that delivers high-pressure fuel from the vehicle fuel supply line to the fuel fuel injectors (9F593) . The fuel injection supply manifold consists of:

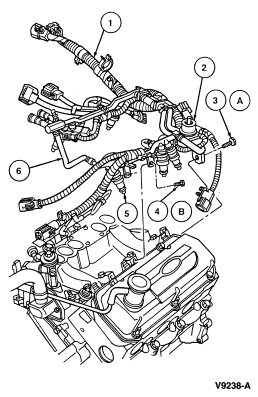

| Item | Part Number | Description |
|---|---|---|
| 1 | 9D930 | Fuel Charging Wiring |
| 2 | 9C968 | Fuel Pressure Regulator |
| 3A | N606691-S2 | Bolt |
| 4B | N805117-S8M | Bolt (4 Req'd) |
| 5 | 9F593 | Fuel Injector |
| 6 | 9F792 | Fuel Injection Supply Manifold |
| A | Tighten to 20-30 Nm (15-22 Lb-Ft) | |
| B | Tighten to 8-11 Nm (71-97 Lb-In) |
