Section 03-01B: Engine, 5.0L HO and 5.0L Cobra
1994 Mustang Workshop Manual

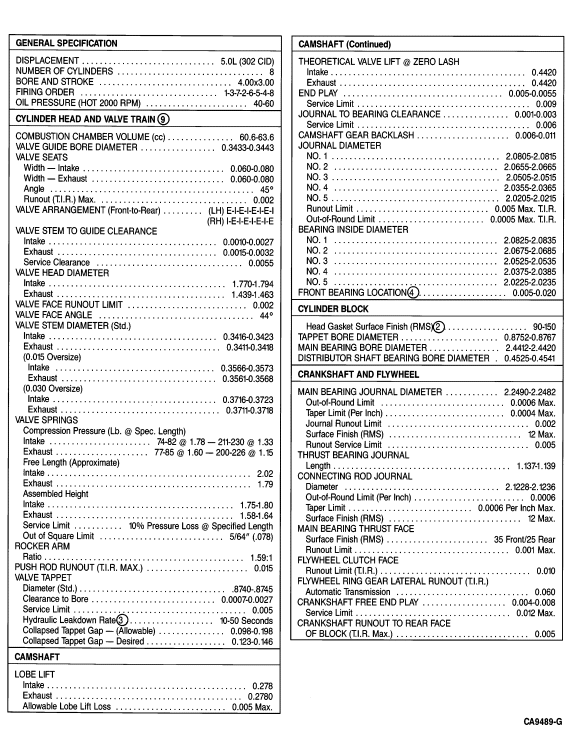

SPECIFICATIONS

Specifications


POWERTRAIN CONTROL/EMISSIONS DIAGNOSIS MANUAL
VEHICLE APPLICATIONS
OBDII 3.8L Mustang, 4.6L Thunderbird/Cougar
OBDI All Other Vehicles



5.0L HO Mustang

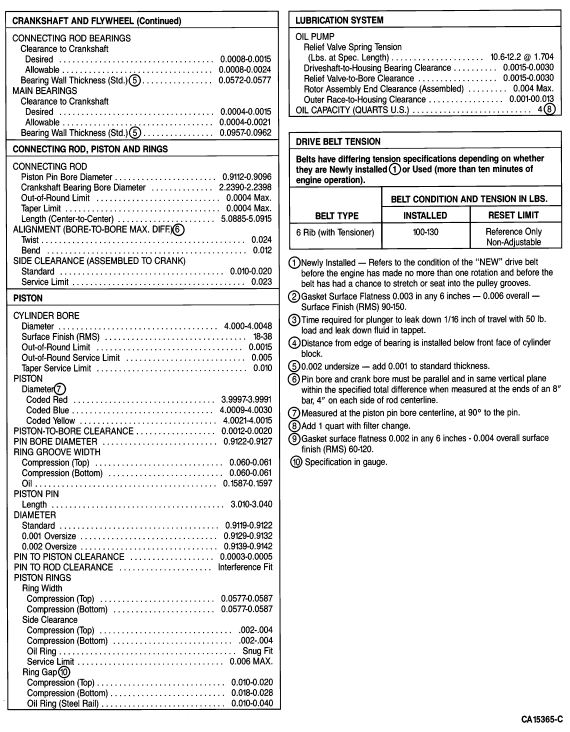

5.0L HO Mustang (Continued)

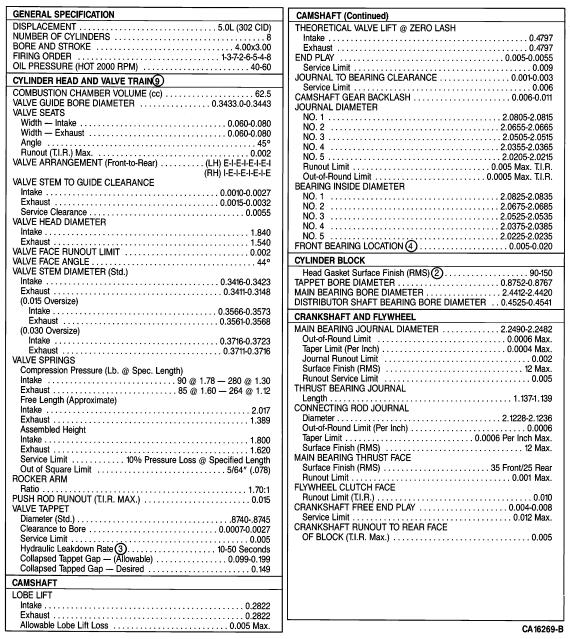

5.0L Cobra

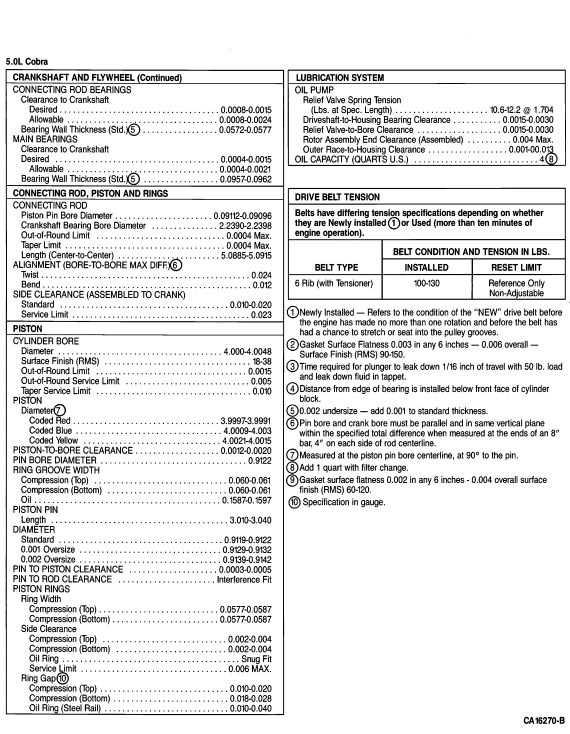

5.0L Cobra (Continued)






TORQUE SPECIFICATIONS
s
Secondary Air Injection Pump Arm To Water Pump Stud Nut 16-24 12-18
Throttle Body Attaching Nut 16-24 12-18
Camshaft Sprocket to Camshaft Bolt 54-61 40-45
Camshaft Thrust Plate To Cylinder Block Bolt 12-16 9-12
Connecting Rod — Nut 26-32 19-24
Engine Front Cover Bolt 16-24 12-18
Cylinder Head Bolt 1 1
Damper To Crankshaft Bolt 149-176 110-130
Hold-Down Clamp Bolt 23-34 17-25
Exhaust Manifold To Cylinder Head Bolt 32-43 26-32
Water Pump Pulley-to-Hub — Bolt 24-29 15-21
Flywheel To Crankshaft Bolt 102-115 75-85
Intake Manifold To Cylinder Head Bolt 3 3
Low Oil Level Sensor 21-33 15-25
Main Bearing Cap — Bolt 81-95 60-70
Oil Filter Insert To Cylinder Block 27-41 20-30
Oil Bypass Filter To Cylinder Block 2 2
Oil Pump Screen Cover and Tube To Oil Pump Bolt 16-24 12-18
Oil Level Indicator Tube Support—Nut 17-23 13-17
Oil Pressure Sender-to-Cylinder Block 16-22 12-16
Oil Pan Drain Plug 20-34 15-25
Oil Pan To Cylinder Block — Bolt 12-16 110-144 (Lb-In)
Oil Pump To Cylinder Block — Bolt 30-43 22-32
Oil Pump Screen Cover And Tube To Main Bearing Cap — Nut 30-43 22-32
Crankshaft Pulley To Damper Bolt 47-68 35-50
Rocker Arm Bolt To Cylinder Head 24-34 18-25
Spark Plug To Cylinder Head 9-20 7-15
Generator And Secondary Air Injection 3/8 30-40 22-30
Pump Bracket To Cylinder Head 3/8 30-40 22-30
Pump Bracket To Cylinder Head 7/16 60-81 44-60
Secondary Air Injection Pump Pivot Bolt 30-40 22-30
Secondary Air Injection Pump Arm To Bracket 30-40 22-30
Secondary Air Injection Pump Pulley To Pump Hub 9-12 79-107 (Lb-In)
Valve Cover Bolt 16-20 12-15
Vacuum Fitting/Plug To Intake Manifold w/Teflon Tape 14-20 10-15
Water Outlet Connection Bolt 16-24 12-18
Water Pump To Engine Front Cover Bolt 20-28 15-21
Valve Tappet Guide Plate Retainer Bolts 8-12 71-106 (Lb-In)

1. Flanged Hex Head Bolt (new bolts required)

  1. Tighten all bolts in sequence to 34-47 Nm (22-35 Lb-Ft).
  2. Tighten all bolts in sequence to 61-75 Nm (45-55 Lb-Ft).
  3. Tighten all bolts in sequence an additional 1/4 turn (85-95 degrees).

2. 1/2 turn after gasket contacts sealing surface.

3. Tighten in three steps:
