Section 03-01A: Engine, 3.8L
1994 Mustang Workshop Manual

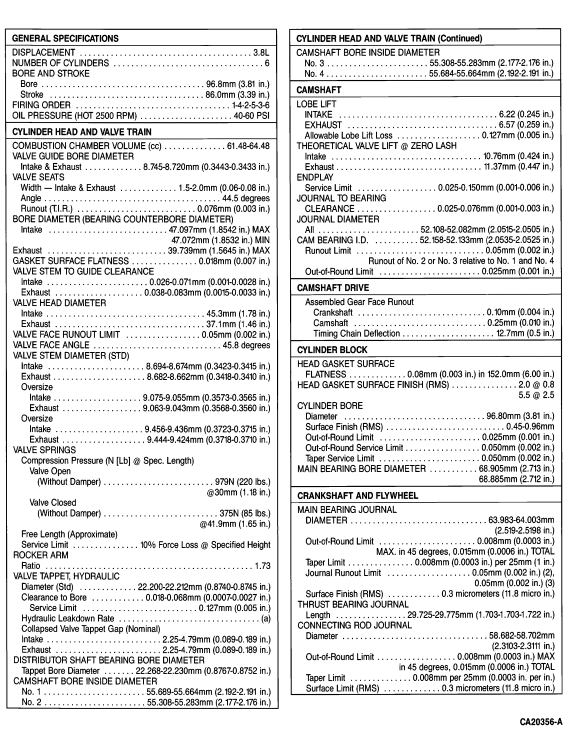

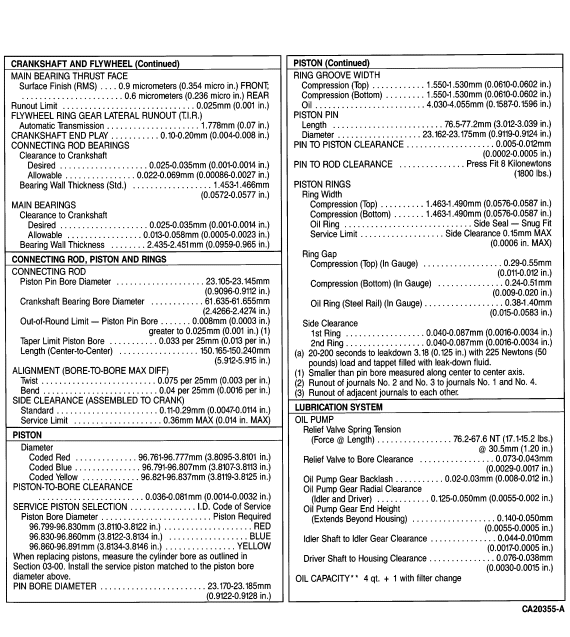

SPECIFICATIONS

Specifications


POWERTRAIN CONTROL/EMISSIONS DIAGNOSIS MANUAL
VEHICLE APPLICATIONS
OBDII 3.8L Mustang, 4.6L Thunderbird/Cougar
OBDI All Other Vehicles











TORQUE SPECIFICATIONS ENGINE
Description N-m Lb-Ft
Camshaft Sprocket to Camshaft—Bolt 40-50 30-37
Camshaft Thrust Plate—Bolt 8-14 6-10
Connecting Rod—Nut — (7)
Water Temperature Indicator Sender Unit 10-20 7-15
Crankshaft Pulley to Crankshaft—Bolt 140-180 103-132
Crankshaft Pulley to Damper—Bolt 26-38 20-28
Cylinder Head Bolt — (2), (3)
Hold-Down Clamp 20-30 15-22
ECT Sensor 8-13 6-9
EGR Valve to Intake Manifold—Stud 20-30 15-22
Exhaust Manifold—Bolts 30-36 22-46
Exhaust Pipe to Manifold—Nuts 21-32 16-23
Flywheel to Crankshaft—Bolt 73-87 54-64
Engine Front Cover to Cylinder Block—Bolt 20-30 15-22
Fuel Injection Supply Manifold 8-11 6-8
Heater Elbow 8.5-13.5 6.5-10
HO2S Sensor 37-45 28-33
Upper Intake Manifold Support Bolt 20-30 15-22
Retaining Strap LH Mount Bolt 45-61 34-44
Oil Pan Drain Plug 20-34 15-25
Oil Pressure Sender 16-24 12-18
Crankshaft Main Bearing Cap Bolt or Stud 110-120 81-89
Timing Chain Vibration Damper to Cylinder Block —Bolts 8-14 6-10
Flywheel Pressure Plate Bolts 27-39 20-29
Lower Intake Bolts — (5)
Upper Intake Bolts — (6)
CMP Sensor 2.5-3.5 22-31 (Lb-In)
IAT Sensor 8-13 6-9.5
Oil Pump and Filter Body to Front Cover—M8 Bolt 25-30 18-22
Oil Pump and Filter Body to Front Cover—M6 Bolt 8-11 6-8
Oil Bypass Filter to Oil Pump and Filter Body (1) 10-15 7-11
Oil Inlet Tube to Cylinder Block—Bolt 20-30 15-22
Oil Inlet Tube to Main Bearing Cap—Nut 40-55 30-40
Oil Pan to Cylinder Block—Bolt 9-12 80-106 (Lb-In)
Valve Cover to Cylinder Head—Bolts/Studs 8.0-11.5 71-102 (Lb-In)
Rocker Arm Fulcrum to Cylinder Head—Bolt — (4)
Spark Plug to Cylinder Head 9-20 7-15
Tappet Guide Plate—Bolt 10-14 7-10
Thermostat Housing to Intake Manifold—Bolt 20-30 15-22
Throttle Body Retainers 20-30 15-22
Vacuum Fitting to Intake Manifold 17-25 13-19
Water Pump to Front Cover— Bolts and Stud Bolts 20-30 15-22
Water Pump to Front Cover—Nuts 6-8 53-71 (Lb-In)
Heater Water Outlet Tube-to Water Pump Bolt 8-12 71-106 (Lb-In)
Oil Level Indicator Tube Support Bracket—Retainer 20-30 15-22
Accelerator Cable Bracket— Retainers 14-20 10-15
EGR Valve to Exhaust Manifold Tube—Nuts 34-47 25-35

  1. Advance half turn after gasket contacts sealing surface.
  1. Tighten in sequence as follows::
    1. 20 Nm (15 lb-ft)
    1. 40 Nm (29 lb-ft)
    1. 50 Nm (37 lb-ft)

       CAUTION: Do not loosen all of the bolts at the same time; only work on one bolt at a time.

  1. Back off all bolts one at a time two to three revolutions and retighten as follows:

    Long Bolts:

    1. Tighten to 15-25 Nm (11-19 lb-ft)
    1. Rotate an additional 85-95 degrees
    1. Go to next bolt in sequence

      Short Bolts:

    1. Tighten to 10-20 Nm (7-15 lb-ft)
    1. Rotate an additional 85-95 degrees
    1. Go to next bolt in sequence
  1. Tighten in two steps:
    1. 5 Nm (44 lb-in) MAX
    1. 25-35 Nm (19-25 lb-ft)
  1. Tighten in two steps:
    1. 11 Nm (8 lb-ft)
    1. 20 Nm (15 lb-ft)
  1. Tighten in numerical sequence in three steps:
    1. 10 Nm (8 lb-ft)
    1. 20 Nm (15 lb-ft)
    1. 32 Nm (24 lb-ft)
  1. Tighten in three steps:
    1. Tighten to 41-49 Nm (31-36 lb-ft)
    1. Loosen two to three revolutions
    1. Final tighten to 41-49 Nm (31-36 lb-ft)

      TORQUE SPECIFICATIONS ENGINE ACCESSORIES
      Description N-m Lb-Ft
      A/C Lower Mounting Bracket to Engine Nuts 41-61 30-45
      Bolt A/C Comp Mounting (4 Places) 41-61 30-45
      Bolt Front Brace to Engine Brace A/C 41-61 30-45
      Bracket, Idler Front Attach Bolt Lower 40-55 30-40
      Bracket, Idler Top Bolt 40-55 30-40
      Front A/C Comp Plate Nut to Engine Stud (2 Places) 41-61 30-45
      Front Brace, A/C to Engine Stud—Nut 20-30 15-22
      Idler Bracket to Generator Top Attaching
      Flange Bolt      		 33-46 24-34
      Idler Pulley Adv Bolts (2 Places) 40-55 30-40
      Nut Brace to Engine, A/C 20-30 15-22
      Support A/C Comp Mounting Bolt to Bracket
      Assembly (2 Places)      		 41-61 30-45
      Heater Tube Support Bracket 20-30 15-22
      POWER STEERING WITH A/C
      Front Bracket to Power Steering Pump—
      Bolt (3 Places)      		 40-62 30-45
      Power Steering Brace Bolt (Lower) 40-62 30-45
      Power Steering Brace Bolt (Upper) 40-62 30-45
      Power Steering Front Bracket Nut (2 Places) 40-62 30-35
      Power Steering Front Bracket to A/C Bracket
      —Bolt      		 40-62 30-35
      POWER STEERING W/O A/C
      Power Steering Brace Bolt (2 Places) 40-62 30-45
      Power Steering Front Bracket Bolt (2 Places) 40-62 30-45
      Power Steering Front Bracket Bolt (3 Places) 40-62 30-45
      Front Engine Support Insulator-to-Cylinder Block —Bolt/Stud Bolt 59-81 44-60
      Front Engine Support Insulator to Front Sub-Frame Nut 97-133 72-98
      Strut Mount to Control Arm—Bolt 140-195 103-144
      Crossmember to Body—Bolts 46-68 35-50
      Steering Shaft—Pinch Bolt 41-57 30-42
      Automatic Transmission to Engine—Bolt 55-68 40-50
      Manual Transmission to Engine—Bolt 38-51 28-38
      Torque Converter to Flywheel—Bolt 27-46 20-34



      GENERAL SPECIFICATIONS
      Torque Specifications—Unless Otherwise Noted Values for Parts as Supplied
      Thread Size Torque — Cast Iron & Aluminum
      (1/4-18) Pipe 24 Nm (18 Lb-Ft)
      (3/8-18) Pipe 38 Nm (28 Lb-Ft)
      M6 14 Nm (10 Lb-Ft)
      M8 28 Nm (21 Lb-Ft)
      M10 53 Nm (39 Lb-Ft)
      M12 96 Nm (71 Lb-Ft)
      M14 158 Nm (117 Lb-Ft)
