Section 03-01A: Engine, 3.8L
1994 Mustang Workshop Manual
IN VEHICLE SERVICE

Flywheel



Removal

  1. Remove transmission. Refer to applicable Section in Group 07.
  1. If equipped with manual transmission, remove clutch pressure plate (7563) and clutch disc (7550) as outlined in Section 08-01.
  1. Remove flywheel retaining bolts and flywheel (6375) .
  1. The engine rear plate (7007) can be removed, if necessary.


Installation

NOTE: If flywheel is to be replaced, check if original flywheel has balance pins or rivets installed. If so, new balance rivets (E2DZ-6A32-A) or equivalent must be installed on new flywheel in same position as on original flywheel .

  1. Coat threads of flywheel retaining bolts with Pipe Sealant with Teflon® D8AZ-19554-A or equivalent meeting Ford specifications WSK-M2G350-AZ and ESR-M18P7-A.
  1. Install engine rear plate, if removed.
  1. Position flywheel on crankshaft (6303) and install retaining bolts. Tighten retaining bolts to 73-87 Nm (54-64 lb-ft) using standard cross-tightening sequence.
  1. If equipped with manual transmission, install clutch disc and clutch pressure plate as outlined in Section 08-01.
  1. Install transmission. Refer to applicable Section in Group 07.

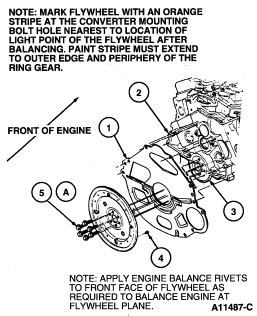

Automatic Transmission





Item Part Number Description
1 7007 Engine Rear Plate
2 6397 Flywheel Housing to Block Dowel (2 Req'd)
3 6303 Crankshaft
4 66430 Balance Rivet
5A N801633-S Bolt (6 Req'd)
A Tighten to 73-87 Nm (54-64 Lb-Ft)

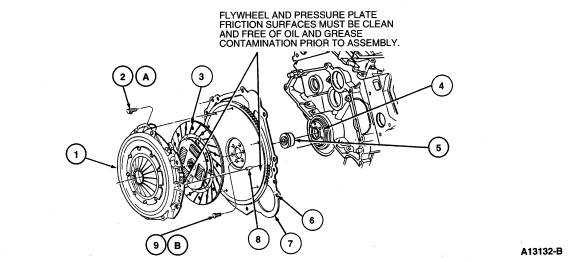

Manual Transmission





Item Part Number Description
1 7563 Clutch Pressure Plate
2A 387299-S2 Bolt (6 Req'd)
3 7550 Clutch Disc
4 6303 Crankshaft
5 7025 Bearing
6 7007 Engine Rear Plate
7 6375 Flywheel
8 7K376 Alignment Pin (3 Req'd)
9B N801633-S Bolt (6 Req'd)
A Tighten to 27-39 Nm (20-29 Lb-Ft)
B Tighten to 73-87 Nm (54-64 Lb-Ft)
