Door Anti-Chucking

The convertible is provided with a front door and quarter wedge-spacer. The front door wedge on the rear of the front door (20124) is secured with two screws. The wedge on the front of the quarter lock face is secured with two nuts. Spacers are to be placed under the wedges to increase contact, if required, to decrease front door to quarter chucking.

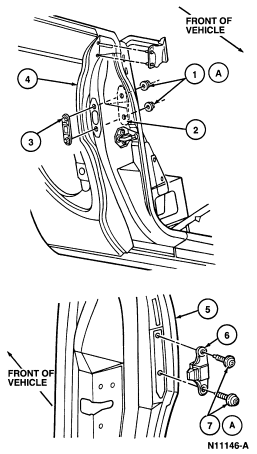

Anti-Chucking Adjustment

Item	Part Number	Description
1A	N621905S301	Nut (2 Req'd Each Side)
2	28486	Quarter Panel Reinforcement
3	253A34	Front Door Opening Wedge
4		Quarter Panel
5	20124	Front Door
6	253A32	Front Door Wedge
7A	N808128S100	Screw (2 Req'd Each Side)
A		Tighten to 10.2-13.8 Nm (91-122 Lb-In)
