NOTE: Mark assembly to ensure installation to the same position. If staples are
removed from the folding top stay pad case (54213)
, they must be replaced.
Remove roof outside cover (52700) and back window glass (42006) as outlined.
Remove staples retaining folding top stay pad case
to the folding top header pad (52515)
and folding top bow (51269)
, folding top front number 3 bow (51274)
and folding top rear number 4 bow (51278)
.
Position folding top stay pad cases
onto folding top linkage assembly.
Staple folding top stay pad cases
to tacking strips on the folding top header pad
and folding top rear number 4 bows
.
Install back window glass
as outlined.
After back window glass
is installed, staple folding top stay pad case
to folding top bow number 2 and folding top front number 3 bow

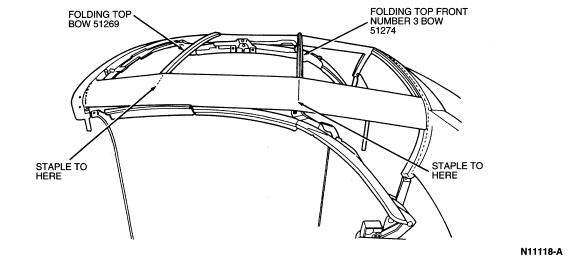

. Staple folding top bow
to second line on folding top stay pad case
. Staple folding top front number 3 bow
to third line on folding top stay pad case
.
