Section 01-17: Convertible
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Window, Rear



Removal

NOTE: Mark vinyl to be removed so it can be returned to the same position after disassembly.

  1. Remove sail area panels as outlined.
  1. Remove staples retaining elastic straps at each side of back window glass (42006) to rear tacking strip and folding top rear number 4 bow (51278) and remove elastic straps.
  1. Remove staples retaining rear bow corner pad (537A71) and bottom of folding top back window curtain (52500) to rear tacking strips.
  1. Remove staples retaining top of folding top back window curtain to folding top rear number 4 bow and remove back window glass .


Installation

NOTE: Transfer markings from the removed assembly.

  1. Mark with grease pencil center point on folding top rear number 4 bow in line with hole on rear of folding top rear number 4 bow .



  1. Align notch at top of back window glass with center point mark on folding top rear number 4 bow . Staple folding top back window curtain to tacking strip along No. 4 bow.

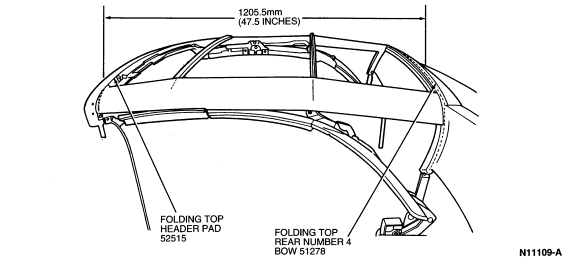

  1. Stretch bottom of folding top back window curtain until centerline of folding top rear number 4 bow is 1205.5 mm (47.5 inches) from front edge of folding top header pad (52515) . Leading edge of folding top back window curtain to fit tight to notch in tacking strip.



  1. Staple bottom of folding top back window curtain starting at the center and working toward the sides one side at a time. Ensure that there are no wrinkles in the folding top back window curtain .
  1. Install foam along the side of the folding top rear number 4 bow starting at the bottom of the rear bow corner pad .



    NOTE: The folding top stay pad rear case (52875) generally will not be removed to replace the back window glass . If it is removed, it will be stapled before the back window glass is installed.

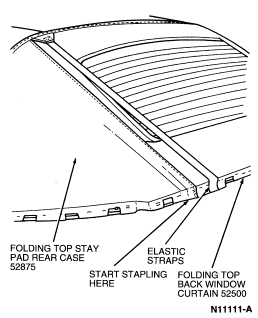

  1. Staple folding top stay pad rear cases starting at the inner edge and working outward. Ensure that there are no wrinkles in the folding top stay pad rear case as you are stapling the folding top stay pad rear case .
  1. Staple elastic straps to folding top rear number 4 bow and at lower tacking strip. Ensure that bottoms of strap are 20mm (0.78 inch) from mounting holes.



  1. Install roof outside cover (52700) as outlined.
