Park Position

Remove the windshield wiper pivot arm (17526) and windshield wiper blade (17528) from the windshield wiper mounting arm and pivot shaft (17566) . Turn on the turn signal and windshield wiper switch (13K359) , allow the windshield wiper motor (17508) to move the windshield wiper mounting arm and pivot shaft three or four cycles, and then turn off the turn signal and windshield wiper switch . This will place the windshield wiper mounting arm and pivot shaft in PARK position.

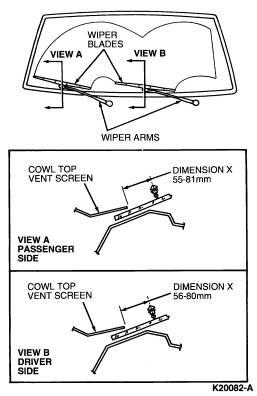

Install the arm and blade assemblies on the pivot shafts to Dimension X.
