Cycle windshield wiper pivot arm (17526)
and windshield wiper blade (17528)
to ease removal of windshield wiper blade
. Turn ignition switch (11572)
OFF at desired position.

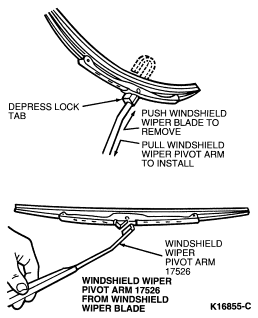

To remove windshield wiper blade
from windshield wiper pivot arm
, press lock tab and push windshield wiper pivot arm
away from windshield wiper blade
.
To install windshield wiper blade
, pull windshield wiper pivot arm
down on windshield wiper blade
until lock tab is engaged.
