Section 01-12: Instrument Panel and Console | 1994 Mustang Workshop Manual |
NOTE: Refer to the following illustrations when disassembling or assembling the instrument panel (04320) .

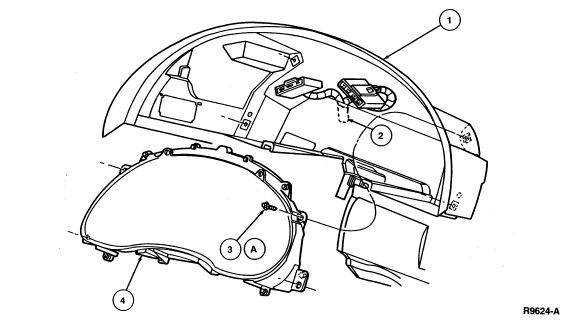

| Item | Part Number | Description |
|---|---|---|
| 1 | 04320 | Instrument Panel |
| 2 | 14401 | Main Wiring |
| 3A | 03876 | Screw |
| 4 | 10849 | Instrument Cluster |
| A | Tighten to 2.3-3.4 Nm (21-30 Lb-In) |

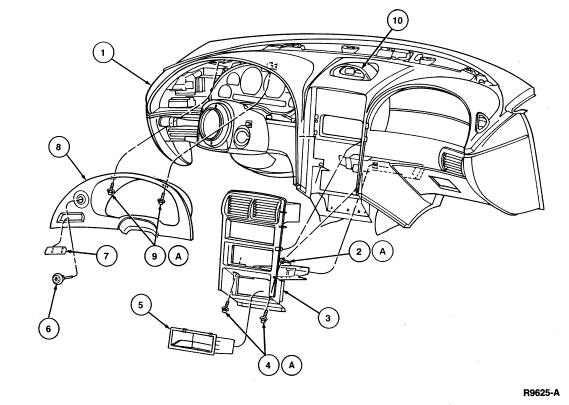

| Item | Part Number | Description |
|---|---|---|
| 1 | 04320 | Instrument Panel |
| 2A | 03876 | Screw |
| 3 | 044D70 | Instrument Panel Finish Panel |
| 4A | 08328 | Screw and Washer Assy |
| 5 | 13570 | Utility Compartment |
| 6 | 11661 | Headlamp Switch Knob and Shaft |
| 7 | 044F58 | Instrument Panel Control Opening Cover |
| 8 | 044D70 | Instrument Panel Finish Panel |
| 9A | 09306 | Screw and Washer Assy |
| 10 | 5K005 | Clock Housing Assembly |
| A | Tighten to 0.4 Nm (1.0 Lb-In) |
