Section 01-12: Instrument Panel and Console
1994 Mustang Workshop Manual
REMOVAL AND INSTALLATION

Console Panel, Floor



Removal and Installation

  1. Disconnect battery ground cable (14301) .
  1. Remove console finish panel (04567) by carefully prying up from retaining clips. Disconnect electrical connectors.
  1. Remove console from arm rest.
  1. Remove six mounting screws (four at front of console panel (045A36) under instrument panel (04320) and two under console glove compartment).
  1. Move parking brake control (2780) to upright position.
  1. Move console panel up and back and disconnect console panel wiring harness connectors.
  1. To install, reverse Removal procedure. If console panel is being replaced, transfer switches, cigar lighter and wiring harness to new console panel .

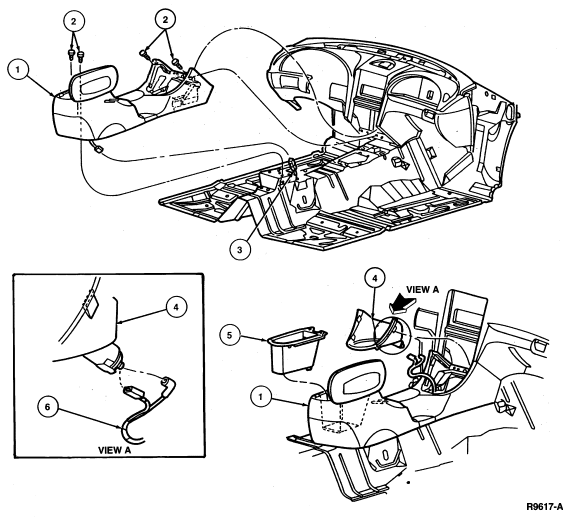

    Console Panel, Floor—Removal





    Item Part Number Description
    1 045A36 Console Panel
    2 56902-S36 Screw (2 Req'd)
    3 14A005 Body Main Wiring
    4 4567 Console Finish Panel
    5 06010 Glove Compartment
    6 — Cigar Lighter Connectors


Console Panel, Floor—Switches





Item Part Number Description
1 045C22 Coin Tray
2 15K214 Courtesy Lamp Switch
3 15691 Convertible Switch Assy
4 045A36 Console Panel
