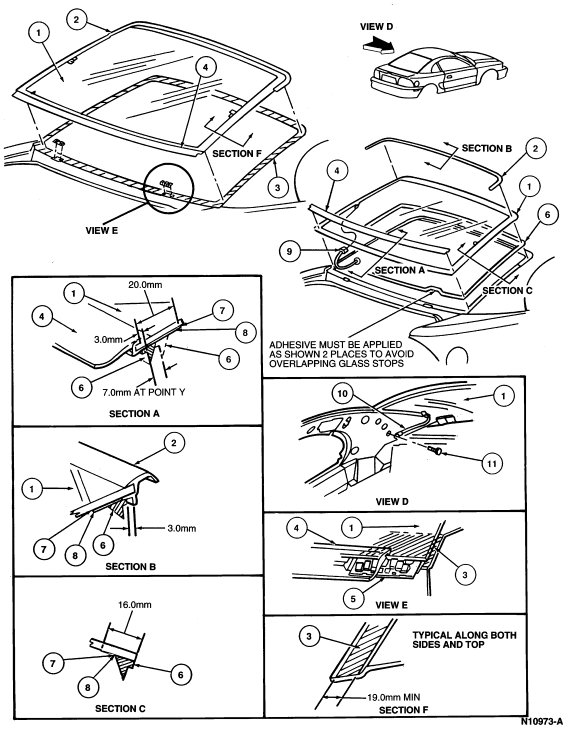

Windshield/Back Window Glass

Glass Removal, Adhesive Cutter Method

1. Remove windshield wiper pivot arms (17526) and cowl top extensions (021A36) .

2. Remove all mouldings, windshield glass stops (03296) and retainers.

3. Remove inside rear view mirror (17700) using Inside Mirror Removal Tool T91T-17700-A.

4. Using Rotunda Glass Adhesive Cutter 118-00050 or Rotunda Deluxe Glass Adhesive Cutter 163-00001 or equivalent, follow manufacturer's instructions and cut seal and dam around entire outer edge of windshield glass (03100) .

    WARNING: SAFETY GLASSES AND GLOVES MUST BE WORN.











5. Remove windshield glass from vehicle using Glass Holding Tool D81T-33610-H or equivalent.





6. Trim urethane left on flange with a utility knife or razor blade until surface is smooth and free of cuts. It is not necessary to remove all urethane from the flange if it is cured. However, at no point should existing urethane material exceed 2.54mm (0.10 inch).

   NOTE: If urethane has not cured completely, remove all uncured urethane using care not to smear urethane on component parts or instrument panel (04320) .

7. Check flange sealing area for damaged sheet metal or foreign objects which may have caused, or may cause, glass breakage. Service sheet metal if necessary.

Installation

1. If existing urethane on metal flange has become contaminated, cut away contaminated urethane with a utility knife or razor blade.

2. If painted sheet metal has been exposed anywhere along the flange, apply Urethane Metal Primer WSB-M2G234-C or equivalent over the painted surface using a clean brush.

   NOTE: A minimum of 30 minutes is required for primer surface to dry.

3. Place the windshield glass on a low, stable work surface, inside up.

4. Clean windshield glass and install inside rear view mirror bracket (17698) onto windshield glass . Refer to Section 01-09.

   NOTE: Wipe off immediately after application because it flash-dries.

5. Using a lint-free cloth, wipe outer 25mm (1 inch) of inside glass periphery with Urethane Glass Wipe WSB-M5B280-C2 or equivalent.

6. Position mouldings on glass.

    CAUTION: Allow all glass parts installed with urethane ample time to cure. If ample time is not allowed, glass may come loose and/or leak.

7. Thoroughly shake and stir Urethane Glass Primer WSB-M2G314-B or equivalent to ensure uniform pigment mixing.

8. Using a clean brush, apply primer around entire periphery of glass on inside surface as shown. (Allow at least 5 minutes drying time.)

9. Properly align glass to body.
   1. Make sure lower windshield glass stops are in place at bottom of windshield glass opening.
   2. Place windshield glass into opening. Center it top and bottom, side-to-side, with about equal clearance around opening.
   3. Using masking tape or crayon, make alignment marks at points on both the windshield glass and the window opening.

10. Remove windshield glass from vehicle and place back on work table.

11. Apply an even bead of Urethane Adhesive WSB-M2G316-B on top of existing urethane around entire window opening using an air pressure cartridge gun. Air line pressure should be around 276 kPa (40 psi). The bead should be large enough to seal the windshield glass but not cause expulsion into vehicle.

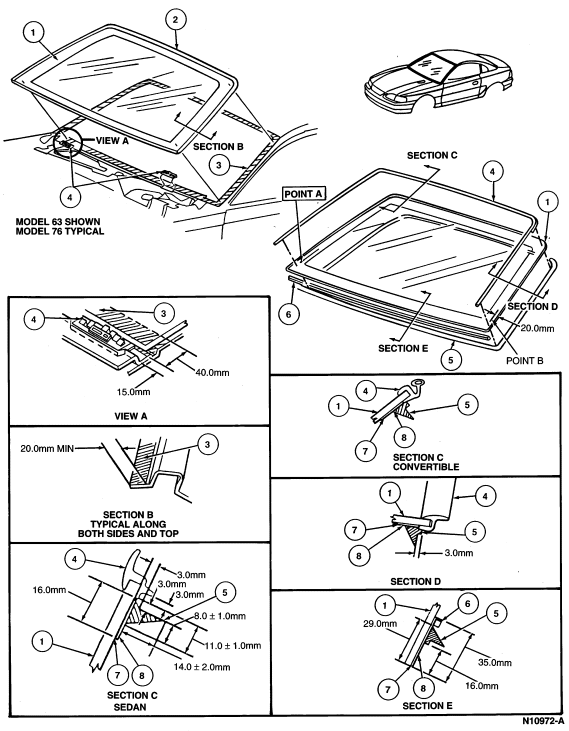

12. When installing the windshield glass , apply Foam Tape ESB-M3G137-A along bottom of windshield glass as shown.

13. Install windshield glass onto vehicle, taking care to align marks on glass to those on body. This must be done within 10 minutes of applying urethane.

14. Install mouldings, windshield wiper pivot arm and cowl top extension .

15. Install inside rear view mirror to inside rear view mirror bracket .

     CAUTION: Use only urethane for after-seal to service air and water leaks in urethane seal. Failure to do this may result in additional leaks.

     CAUTION: Allow all glass parts installed with urethane ample time to cure. If ample time is not allowed, glass may come loose and/or leak.
