Door Window Glass

Removal

1. Remove the front door trim panel (23942) and watershield. Refer to Section 01-05.

2. Remove the screws attaching the door window glass inner stabilizers (22380) and remove the door window glass inner stabilizers .

3. Remove the screws attaching the door window upper stops and remove the stops.

4. Remove front door belt line inside weatherstrip (21456), remove one rivet and remove front door belt line outside weatherstrip (21452).

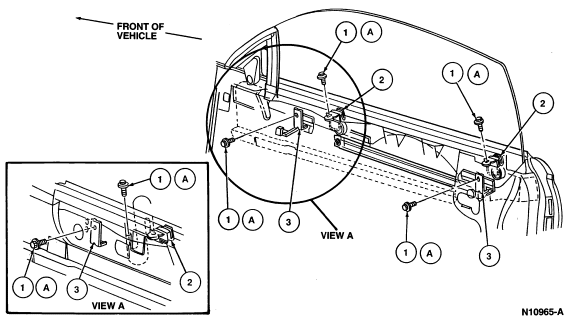

   Upperstop and Stabilizer, Door Glass







   Item	Part Number	Description
   1A	N808375-S36	Screw and Washer (4 Req'd)
   2	22380	Door Window Glass Inner Stabilizer
   3	21742	Front Door Window Front Upstop Bracket
   A		Tighten to 10.2-13.8 Nm (8-10 Lb-Ft)

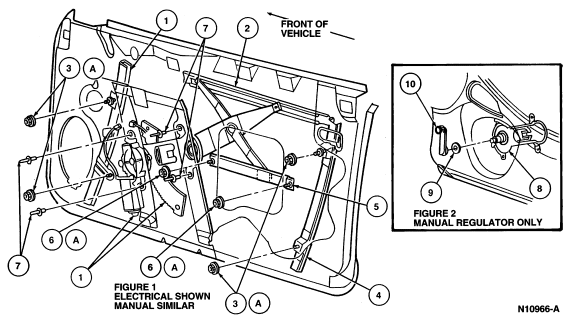

   Window Regulator, Front Door







   Item	Part Number	Description
   1	21572(RH) 21573(LH)	Front Door Glass Run Front Retainer
   2	23200 RH 23201 LH	Front Door Power Window Regulator
   3A	N800251-S36	Nut and Washer (4 Req'd)
   4	21546	Front Door Glass Hinge Side Run
   5	23342	Electrical Window Regulator Handle
   6A	N621906-S36	Nut and Washer (2 Req'd)
   7	W525172-S	Rivet (4 Req'd)
   8	23200 RH 23201 LH	Manual Front Door Power Window Regulator
   9	23370	Window Regulator Handle Plate
   10	23342	Manual Window Regulator Handle
   A		Tighten to 10.2-13.8 Nm (91-122 Lb-In)

5. Lower the front door window glass (21410) to gain access to the front door window channel bracket (23288) attaching rivets.

    CAUTION: Use care when drilling out the rivet to prevent enlarging the front door window channel bracket and spacer holes and damaging the door window glass channel bracket retainer (234A46) .

6. Using a drift punch, remove the center pin of each rivet attaching the front door window glass to the front door window channel bracket . Using a 1/4-inch drill, drill out the remainder of the rivet.

7. Remove front door window glass .

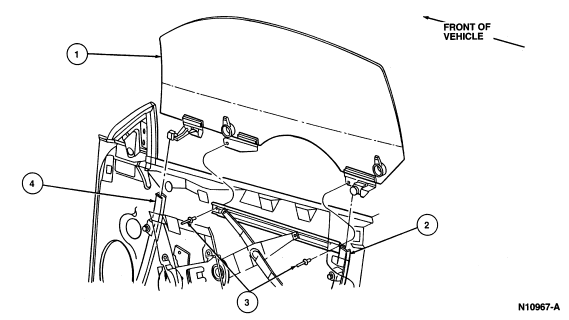

   Item	Part Number	Description
   1	21410 (RH) 21411 (LH)	Front Door Window Glass
   2	21546	Front Door Glass Hinge Side Run
   3	W525172-S	Rivet (2 Req'd)
   4	21572 21573	Door Glass Run Retainer, Front

Installation

1. Position the front door window glass to the front door power window regulator (23200) . Install two 1/4-inch blind rivets or two 1/4-20x1/2 inch hex-head bolts with two 1/4-20 nut and washer assemblies to attach the front door window glass to the front door power window regulator . Tighten the bolt and nut to 10.2-13.8 Nm (8-10 lb-ft). Equivalent metric retainers may also be used.

2. Loosely install the door window glass inner stabilizers .

3. Loosely install the door window upper stop brackets.

   NOTE: If adjustment is needed, refer to Adjustments as outlined.

4. Cycle the front door window glass to check for proper operation.

5. When front door window glass cycles properly, tighten the stabilizer retaining screws to 10.2-13.8 Nm (8-10 lb-ft).

6. Install the front door trim panel and watershield. Refer to Section 01-05.
